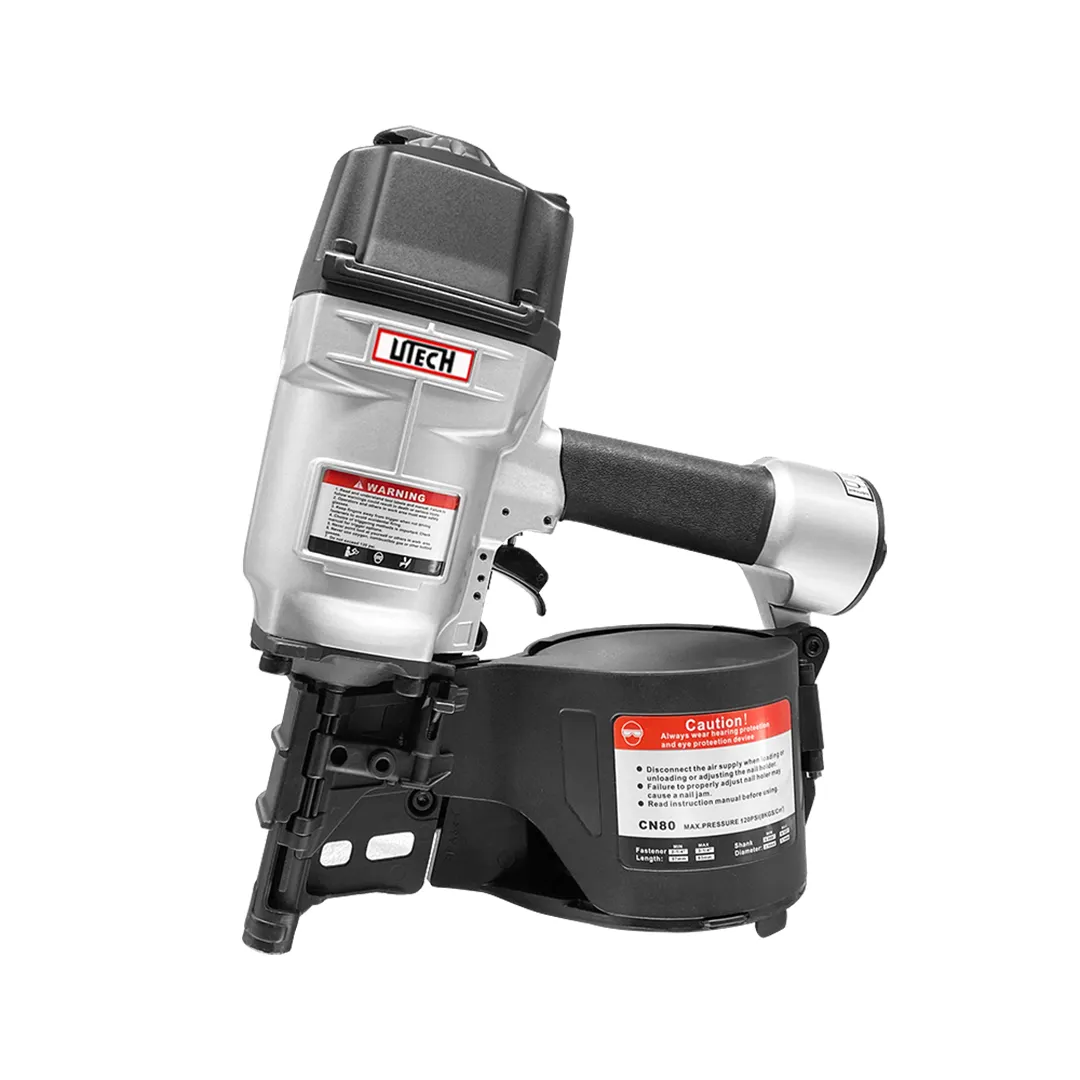

UDCN-80 Industrial Coil Nailer
The UDCN‑80 Industrial Coil Nailer is a high‑power industrial coil nailer engineered for pallet manufacturing, heavy crating, industrial packaging, and structural wood assembly. Designed for demanding production environments, it delivers strong, consistent driving performance for long coil nails while maintaining excellent balance, low recoil, and reliable feeding. Its reinforced construction and efficient firing system make it a dependable choice for continuous, heavy‑duty industrial use.
Product Information
FEATURES
- Ergonomic Design, Well Balanced
- Powerful, Rapid Nailing Performance
- Body Protectors Equipped
- Top Exhaust Cap Available
- High Speed Operation
- Accurate nose, minimize nail jam

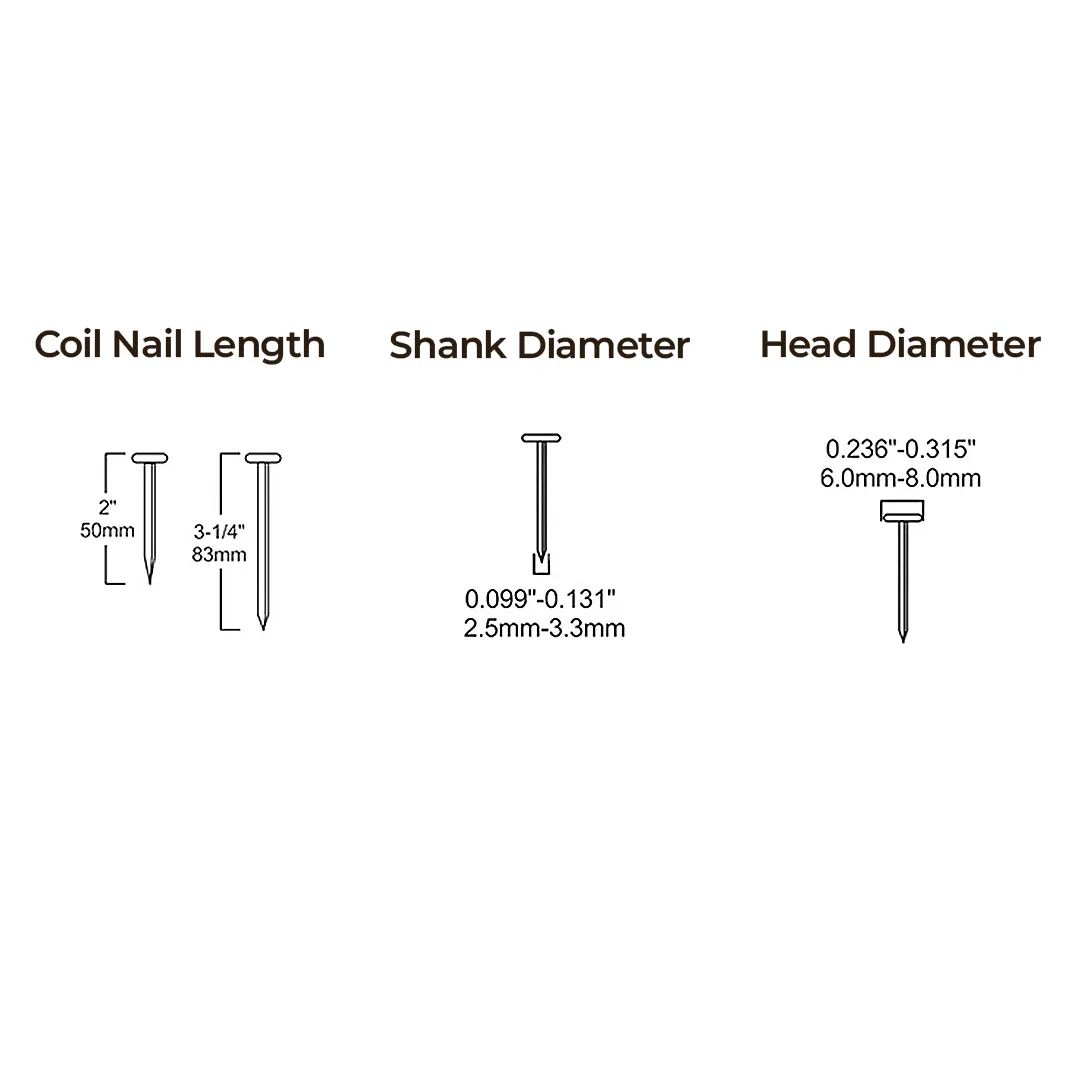

FASTENERS
- 15° Flat Wire Collated Nails
- Length: 50 to 83 mm (2 to 3 1/4 inch)
- Shank Diameter: 2.5 - 3.1 mm (0.099 - 0.122 inch)
- Head Diameter: 6.0 - 8.0 mm (0.236 - 0.315 inch)
- Shank Type: Smooth, Ring & Screw
APPLICATIONS
SPECIFICATIONS
- Weight: 3.98 kgs (8.78 lbs)
- Dimensions (L*W*H): 362 x 132 x 307 mm (14 1/4 x 5 13/64 x 12 3/32 inch)
- Operated Pressure: 6 - 8.3 kg/cm2 (80 - 120 psi)
- Load Capacity: 225 - 300 Nails
