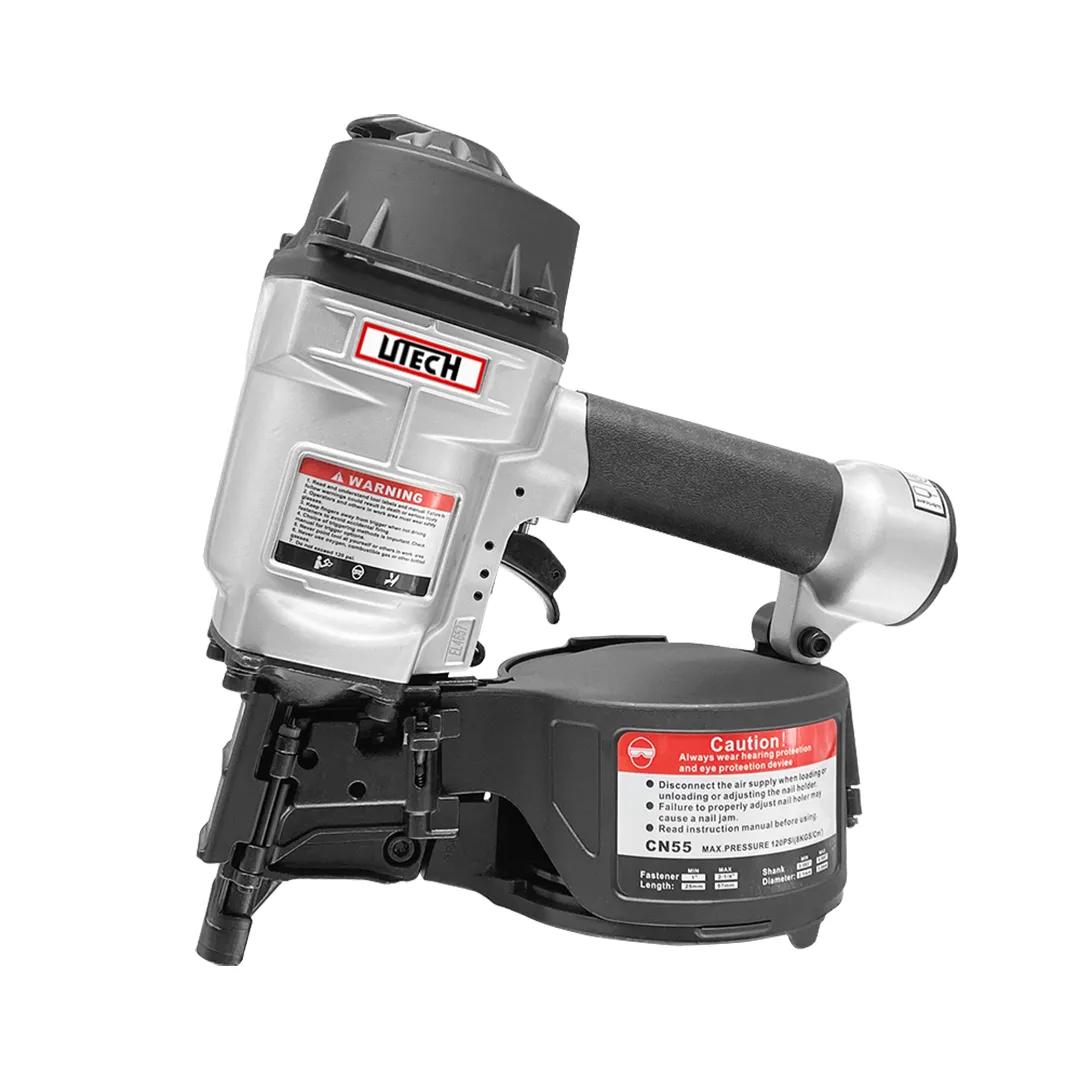

UDCN-55 Industrial Coil Nailer
The UDCN‑55 Industrial Coil Nailer is a compact, high‑speed industrial coil nailer engineered for pallet repair, crating, industrial packaging, fencing, and light‑to‑medium wood assembly. Designed for maneuverability and rapid production, it delivers reliable driving power for shorter‑length coil nails while maintaining excellent balance, low recoil, and consistent depth control. Its durable construction and efficient feeding system make it ideal for continuous use in demanding industrial environments.
Product Information
FEATURES
- Ergonomic Design, Well Balanced
- Powerful, Rapid Nailing Performance
- Body Protectors Equipped
- Top Exhaust Cap Available
- High Speed Operation
- Accurate nose, minimize nail jam

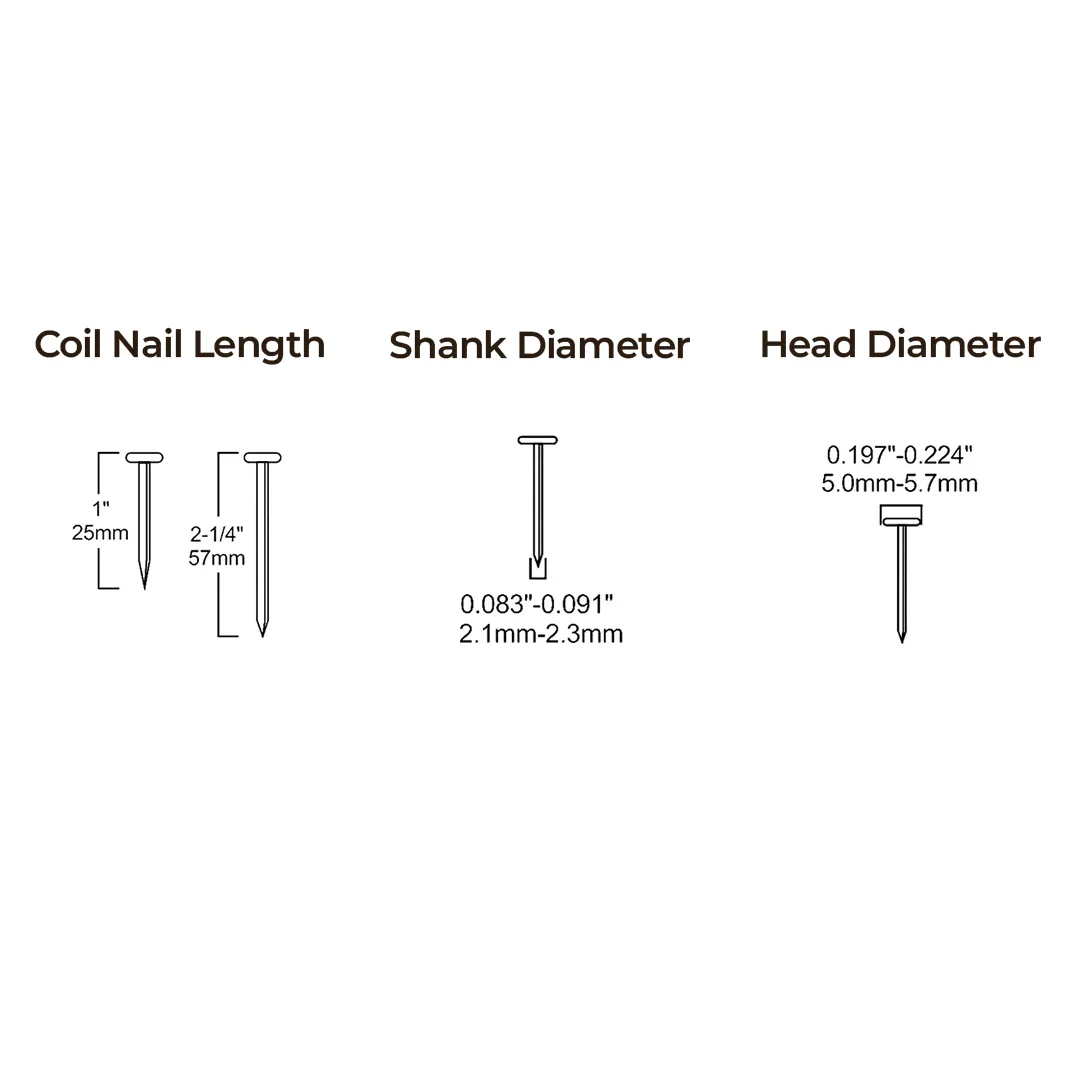

FASTENERS
- 15° Flat Wire Collated Nails
- Length: 25 - 57 mm (1 17/64 - 2 1/4 inch)
- Shank Diameter: 2.1 - 2.3 mm (0.083 - 0.091 inch)
- Head Diameter: 5.0 - 5.7 mm (0.197 - 0.224 inch)
- Shank Type: Smooth, Ring & Screw
APPLICATIONS
SPECIFICATIONS
- Weight: 2.5 kgs (5.6 lbs)
- Dimensions (L*W*H): 288 x 131 x 270 mm (11 5/16 x 5 3/16 x 10 5/16 inch)
- Operated Pressure: 6 - 8.3 kg/cm2 (80 - 120 psi)
- Load Capacity: 200 - 300 Nails
