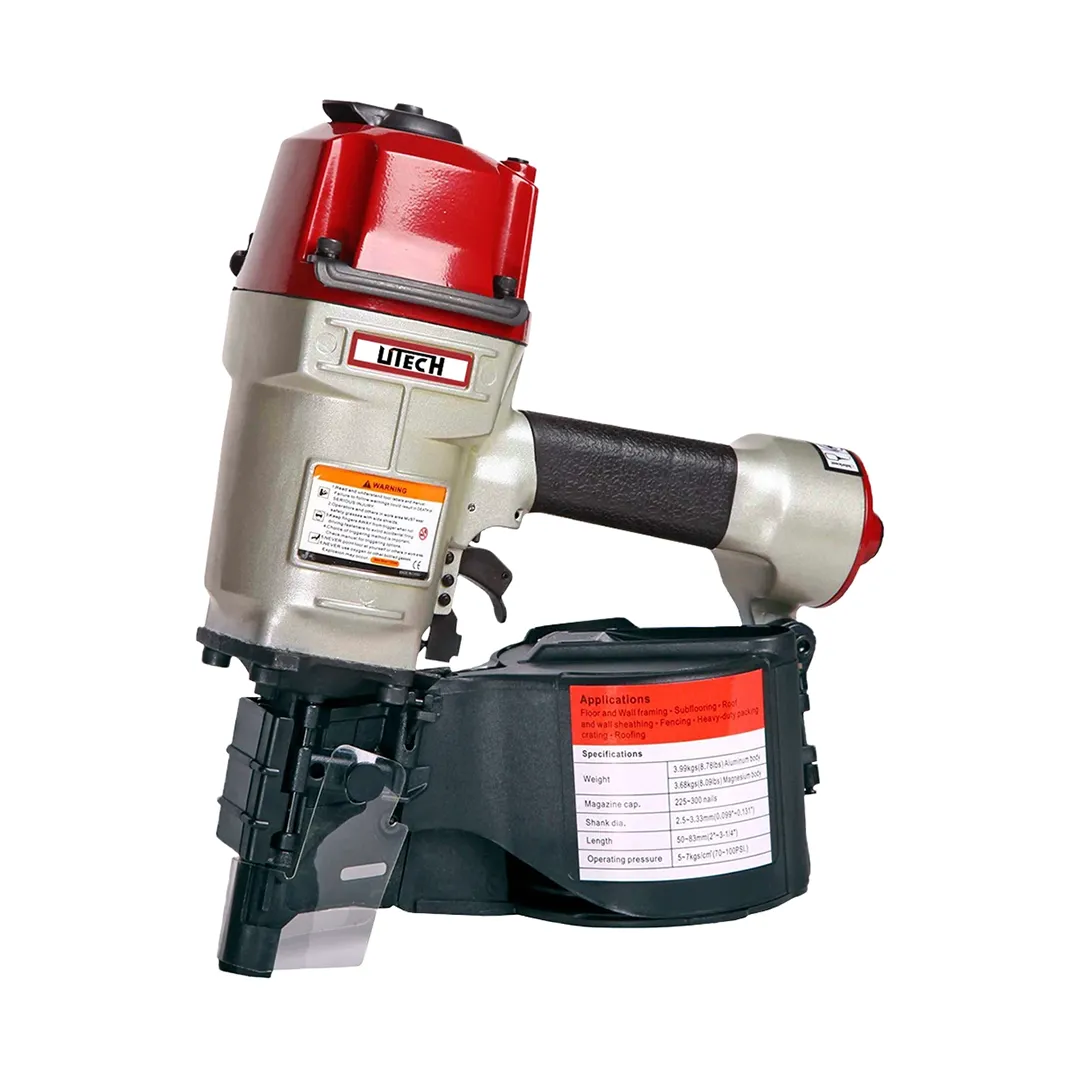

URCN-80 Industrial Coil Nailer
The URCN-80 Indstrial Coil Nailer is a high‑power industrial coil nailer engineered for demanding applications such as pallet manufacturing, crating, industrial packaging, heavy‑duty construction, and structural wood assembly. With a reinforced body, upgraded driving energy, and a high‑capacity coil magazine, the URCN‑80 delivers the force required to sink large‑diameter nails into dense hardwoods and engineered materials with speed, consistency, and reliability.
Product Information
FEATURES
- Ergonomic Design, Well Balanced
- Powerful, Rapid Nailing Performance
- Body Protectors Equipped
- Top Exhaust Cap Available
- Durable Nose and Anti-Abrasive Driver
- High Speed Operation

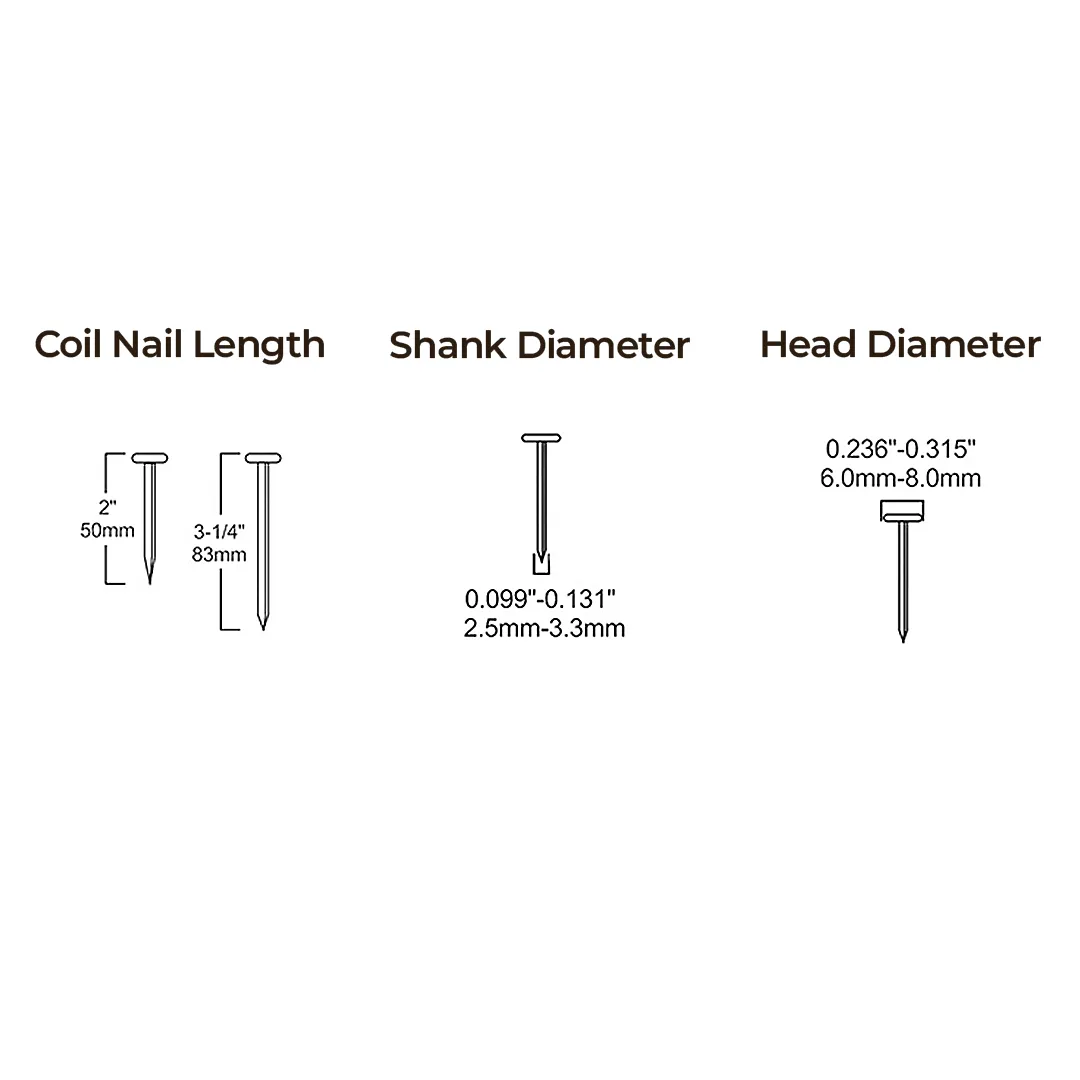

FASTENERS
- 15° Flat Wire Collated Nails
- Length: 50 to 83 mm (2 to 3 1/4 inch)
- Shank Diameter: 2.5 - 3.3 mm (0.099 - 0.131 inch)
- Head Diameter: 6.0 - 8.0 mm (0.236 - 0.315 inch)
- Shank Type: Smooth, Ring & Screw
APPLICATIONS
SPECIFICATIONS
- Weight: 3.98 kgs (8.78 lbs)
- Dimensions (L*W*H): 362 x 132 x 307 mm (14 1/4 x 5 3/16 x 12 1/8 inch)
- Operated Pressure: 5 - 8.3 kg/cm2 (70 - 120 psi)
- Load Capacity: 225 - 300 Nails
