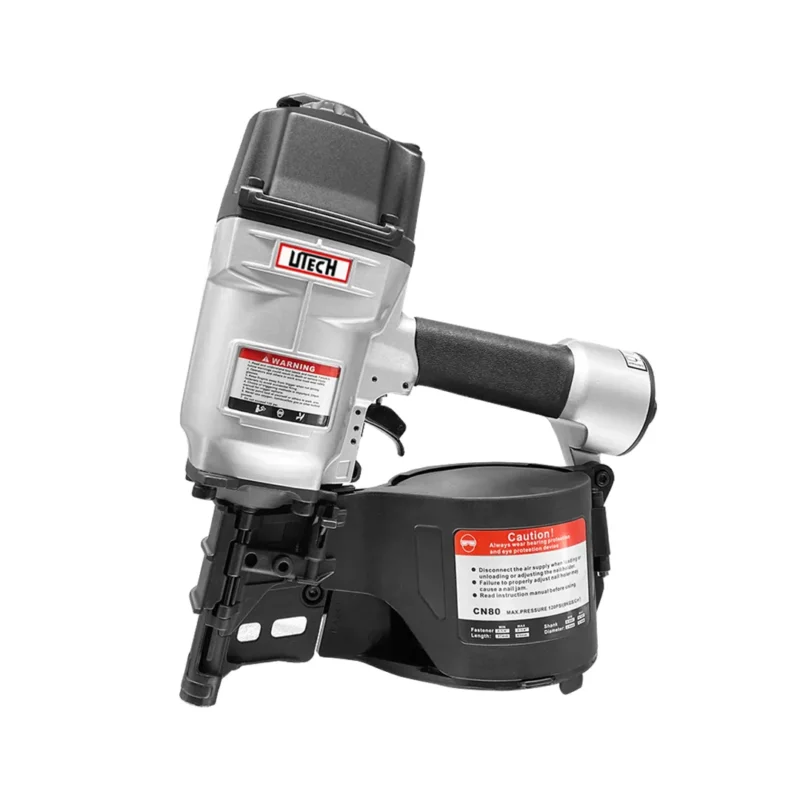

CN-83.1 Pneumatic Coil Nailer
The CN‑83.1 Pneumatic Coil Nailer is a heavy‑duty pneumatic coil nailer engineered for pallet manufacturing, crating, industrial packaging, and structural wood assembly. Designed for high‑demand production environments, it delivers powerful, consistent driving performance for long, large‑diameter coil nails. Its reinforced construction, efficient firing system, and stable feeding mechanism make it a reliable choice for continuous industrial use where strength and durability are essential.
Product Information
FEATURES
- Ergonomic Design, Well Balanced
- Powerful, Rapid Nailing Performance
- 360° Adjustable Exhaust Port
- Body Protectors Equipped
- Adjustable Safety Yoke Available

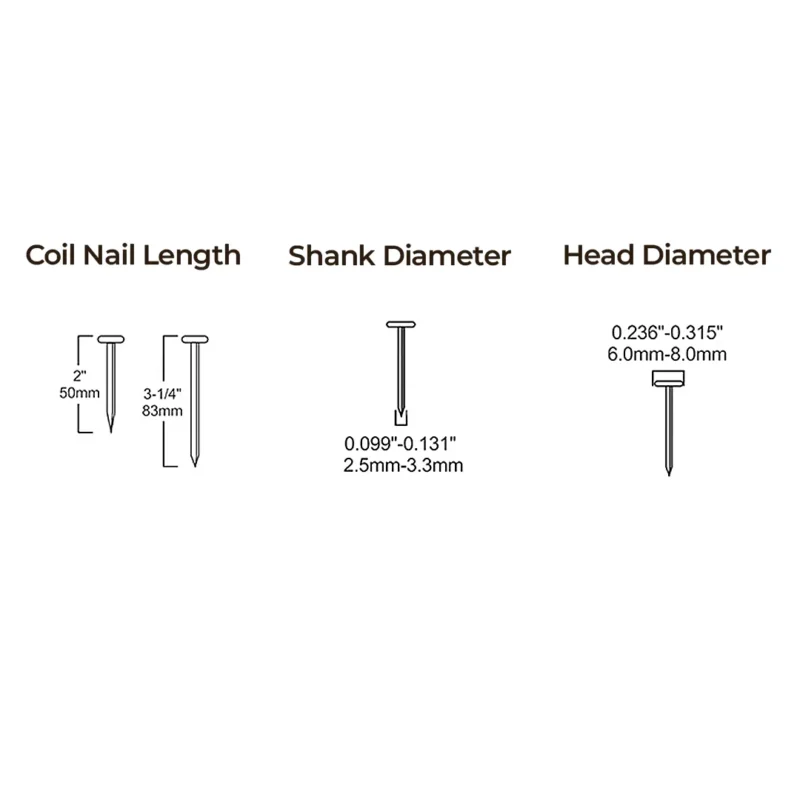

FASTENERS
- 15° Flat Wire Collated Nails
- Length: 50 to 83 mm (2 to 3 1/4 inch)
- Shank Diameter: 2.5 - 3.3 mm (0.099 - 0.131 inch)
- Shank Type: Smooth, Ring & Screw
APPLICATIONS
SPECIFICATIONS
- Weight: 3.7 kgs (8.20 lbs)
- Dimensions (L*W*H): 313 x 129 x 349 mm (12 5/16 x 5 1/16 x 13 3/4 inch)
- Operated Pressure: 5 - 7 kg/cm2 (70 - 100 psi)
- Load Capacity: 225 - 300 Nails
