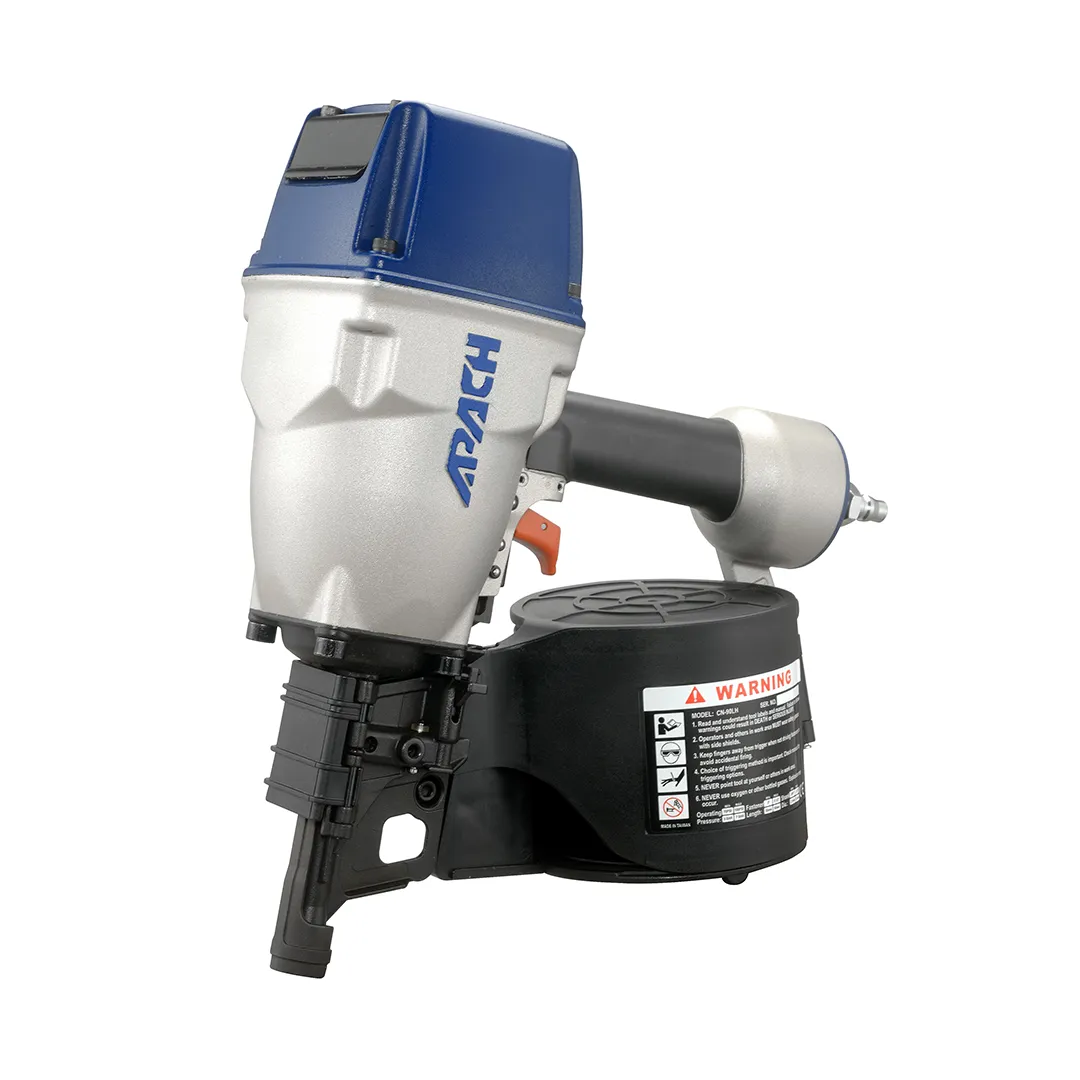

CN-90.1L Industrial Coil Nailer
The CN‑90.1L Industrial Coil Nailer is a heavy‑duty industrial coil nailer engineered for pallet manufacturing, export‑grade crating, structural wood assembly, and industrial fabrication. Designed to deliver high driving energy with long, large‑diameter coil nails, the CN‑90.1L combines reinforced construction with smooth, reliable operation. Its extended‑capacity design and efficient firing system make it ideal for continuous, high‑demand production environments where strength, speed, and durability are essential.
Product Information
FEATURES
- Ergonomic Design, Well Balanced
- Powerful, Rapid Nailing Performance
- Anti-double fire mechanism available
- Sequential Trigger Available
FASTENERS
- 15° Flat Wire Collated Nails

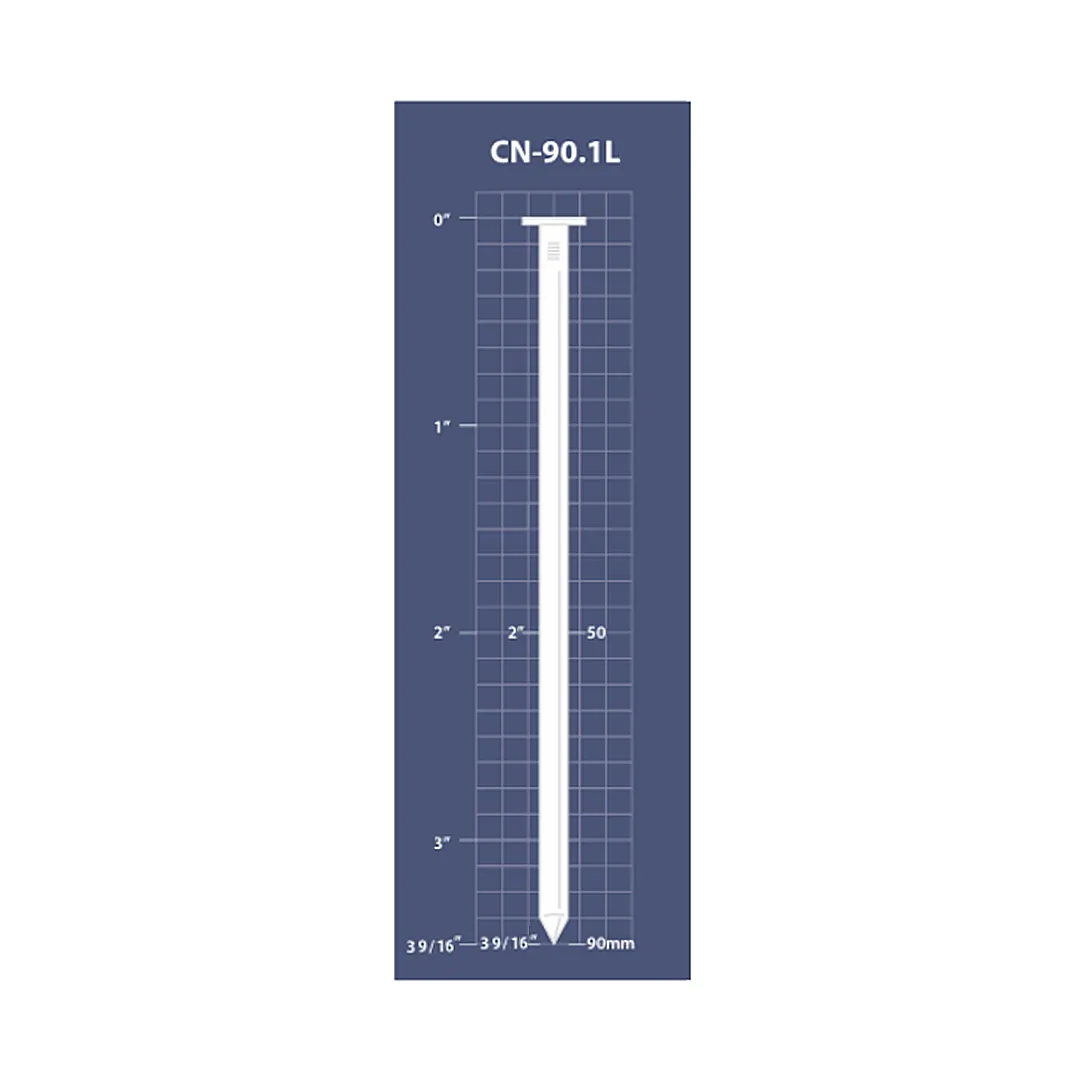

- Length: 50 to 90 mm (2 to 3 9/16 inch)
- Shank Diameter: 2.5 - 3.3 mm (0.099 - 0.131 inch)
- Shank Type: Smooth, Ring & Screw
APPLICATIONS
SPECIFICATIONS
- Weight: 3.74 kgs (8.23 lbs)
- Dimensions (L*W*H): 347 x 142 x 365 mm (13 11/16 x 5 9/16 x 14 3/8 inch)
- Operated Pressure: 5 - 7 kg/cm2 (70 - 100 psi)
- Load Capacity: 225 - 300 Nails
