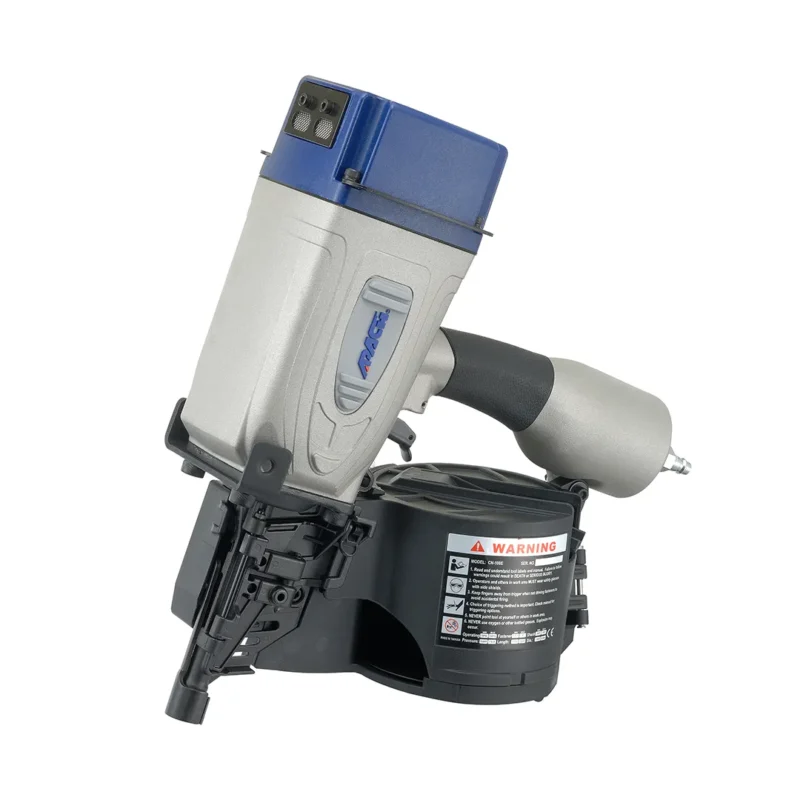

CN-100E Industrial Coil Nailer
The CN‑100E Industrial Coil Nailer is an ultra heavy‑duty industrial coil nailer engineered for the most demanding applications in pallet manufacturing, export‑grade crating, structural timber assembly, and industrial fabrication. Designed to drive extra‑long, large‑diameter coil nails with exceptional force, the CN‑100E combines reinforced construction with a high‑energy firing system for maximum penetration and holding strength.
Product Information
FEATURES
- Ergonomic Design, Well Balanced
- Powerful, Rapid Nailing Performance
- Removable Auxiliary Side Handle
- Body Protectors Equipped

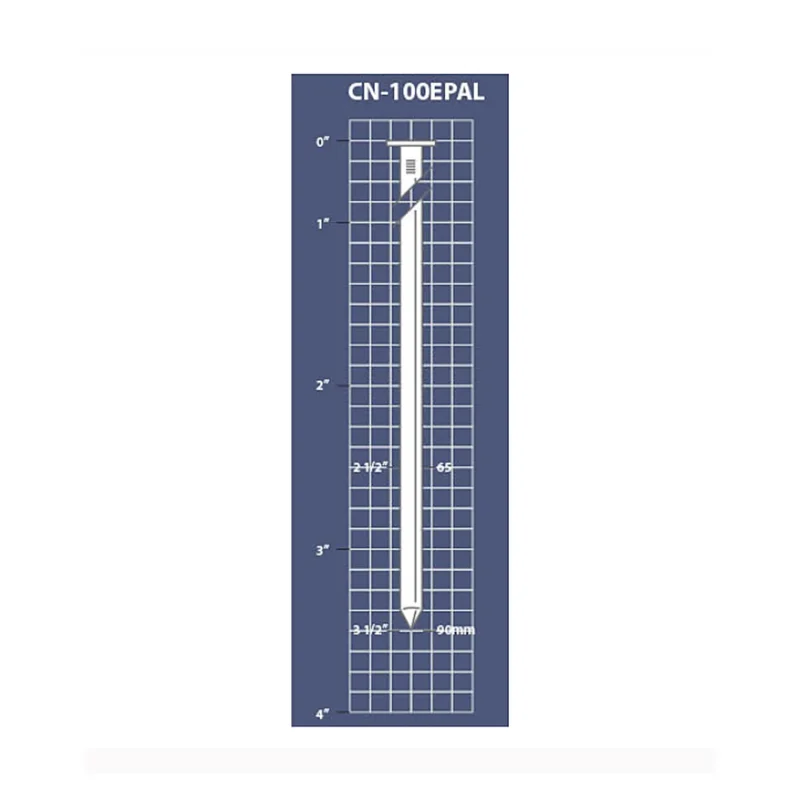

FASTENERS
- 15° Flat Wire Collated Nails
- Length: 65 to 100 mm (2 1/2 to 4 inch)
- Shank Diameter: 2.5 - 3.3 mm (0.099 - 0.131 inch)
- Shank Type: Smooth, Ring & Screw
APPLICATIONS
SPECIFICATIONS
- Weight: 5.36 kgs (11.8 lbs)
- Dimensions (L*W*H): 355 x 141 x 412 mm (14 x 5 1/2 x 16 7/32 inch)
- Operated Pressure: 5 - 7 kg/cm2 (70 - 100 psi)
- Load Capacity: 200 - 300 Nails
