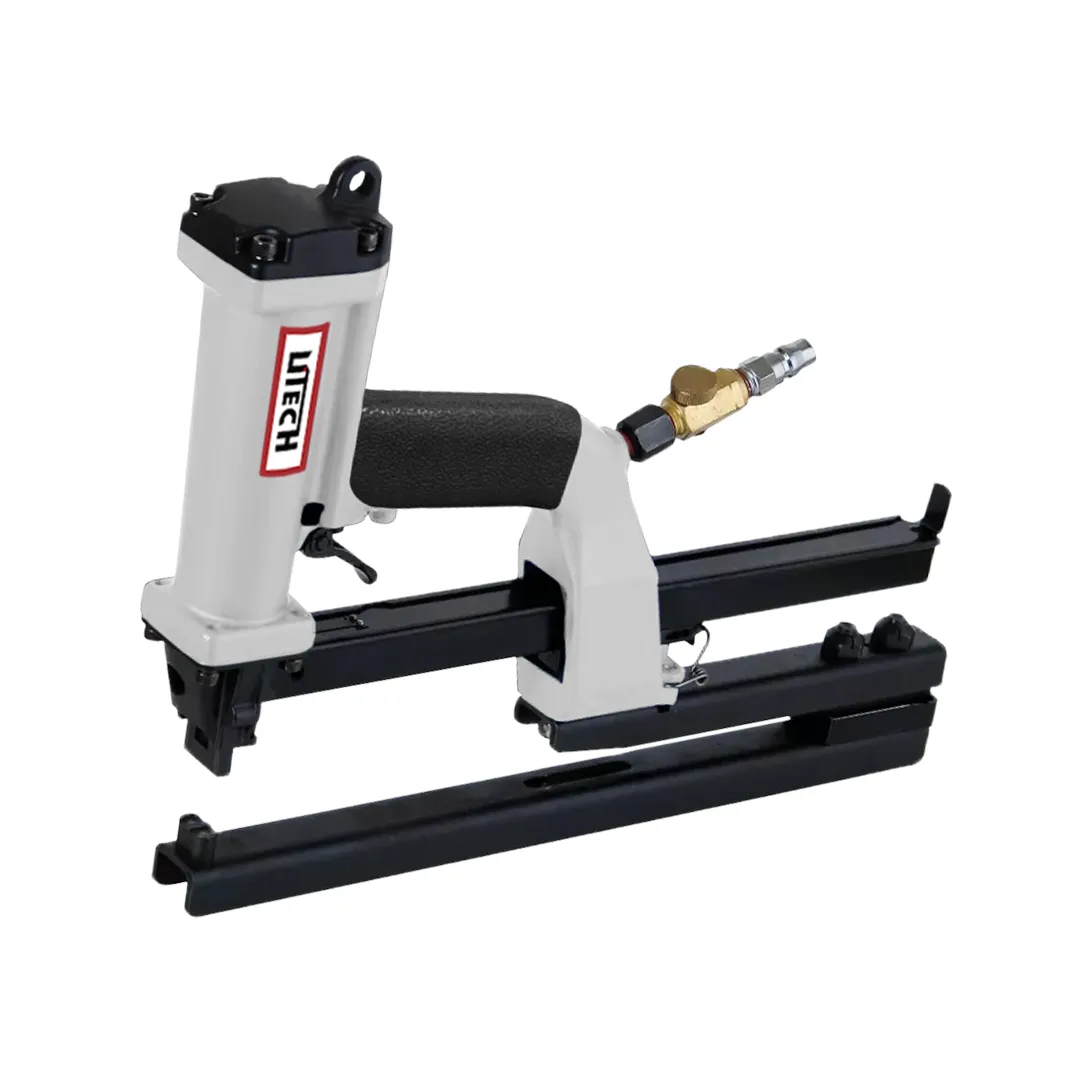

UTP50-10B-A Pneumatic Stapler Plier
The UTP50-10B-A Pneumatic Stapler Plier is designed for fast, consistent fastening of corrugated components, carton assemblies, and packaging materials. It delivers strong mechanical closures through a plier‑style clamping action that grips and compresses materials before each staple is driven. This ensures uniform penetration, clean clinching, and secure fastening across a wide range of packaging substrates. A key advantage of the UTP50‑10B‑A is its compatibility with multiple anvil types—A‑type, B‑type, CL‑type, DR‑type, and L‑type—allowing the tool to be configured for different material thicknesses, staple‑folding requirements, and specific packaging geometries.
Product Information
FEATURES
- High-capacity magazine, greater productivity
- Tool-free adjustable anvil opening
- Powerful shuttle blade provides pre-compression
- Bottom-load magazine for quick reloading
- High throat allows flexibility of staple placement and limits interference from obstacles
FASTENERS
- Staple Type: SB 1030

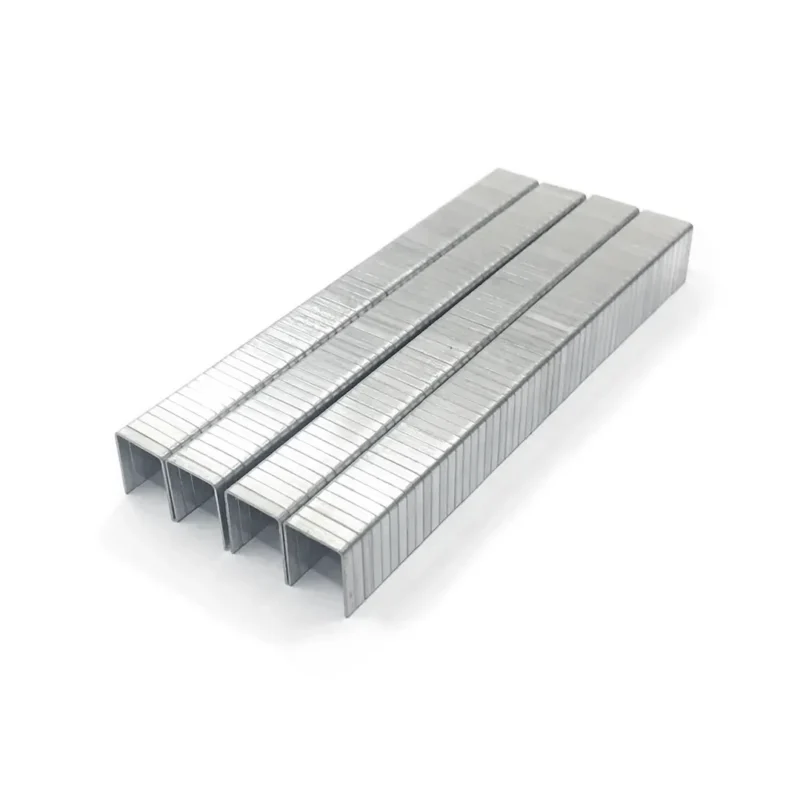

- Similar to: SB103020 Series
- Crown: 12.95 mm (0.512 inch)
- Wire: 2.60 x 0.50 mm (0.103 x 0.020 inch)
- Length: 10 to 15 mm (3/8 to 5/8 inch)
APPLICATIONS
SPECIFICATIONS
- Weight: 2.20 kg (4.8 lbs)
- Dimensions (L*W*H): 370 x 55 x 240 mm (14.57 x 2.17 x 9.45 inch)
- Operated Pressure: 2.5 - 3.9 kg/cm2 (36 - 55 psi)
- Load Capacity: 125 Staples
