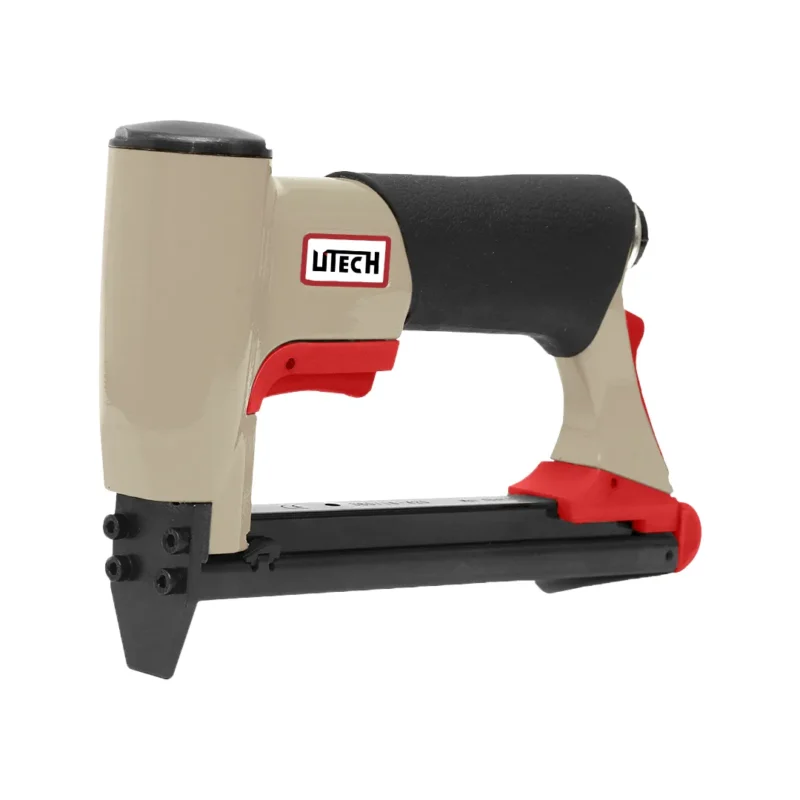

URFS-8016 Fine Wire Stapler
The URFS-8016 Fine Wire Stapler is a professional‑grade 80‑series fine‑wire stapler designed for upholstery, furniture assembly, bedding, light wood fastening, and general textile work. Built for precision and reliability, it drives 21‑gauge 80‑series staples (6–16 mm) with clean penetration and minimal surface marking, making it ideal for delicate materials such as fabric, leather, and vinyl. Its refined internal mechanism ensures smooth feeding, low recoil, and consistent staple formation, even during continuous production use.
Product Information
FEATURES
- Light weight and well balanced for easy operating.
- Superior power with hardened one piece piston for professional application.
- Open nose design, for easy extraction of a jammed nail.
- Tool free depth of drive adjustment, for flush or countersunk drive into varying material.
- Hardened claw tip, reduces wear and limits slippage when driving at a stand angle.
FASTENERS
- Staple Type: 80 Series
- Crown Size: 13 mm (0.5 inch)
- Length: 6 to 16 mm (1/4 to 5/8 inch)
- Wire: 0.91 x 0.70 mm (0.037 x 0.026 inch)
APPLICATIONS
SPECIFICATIONS
- Weight: 1.00 kg (2.20 lbs)
- Dimensions (L*W*H): 150 x 45 x 220 mm (5.91 x 1.77 x 8.6 inch)
- Operated Pressure: 4 - 7 kg/cm2 (60 - 100 psi)
- Load Capacity: 157 Staples
