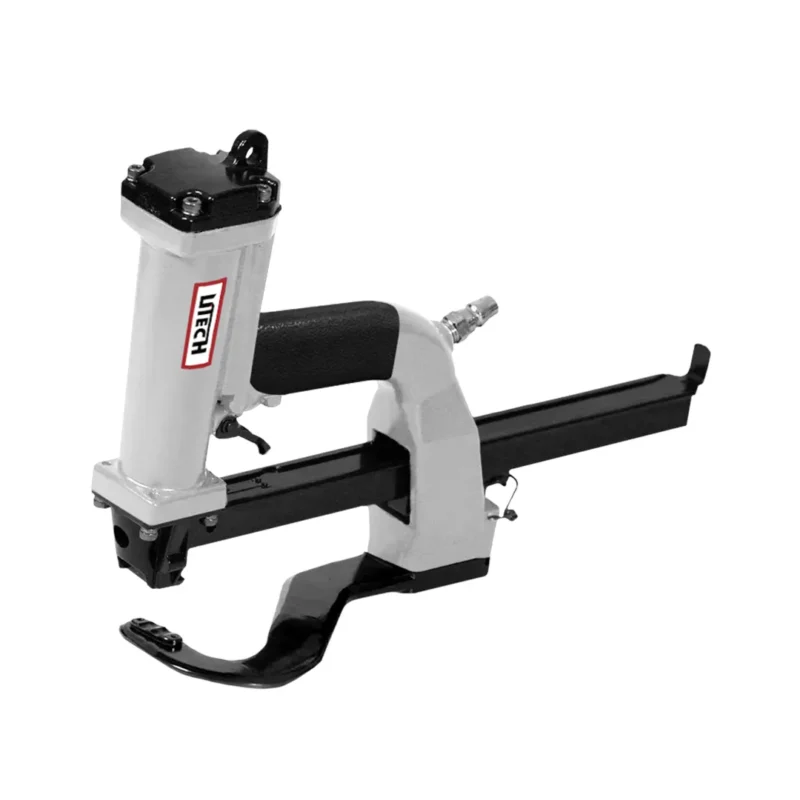

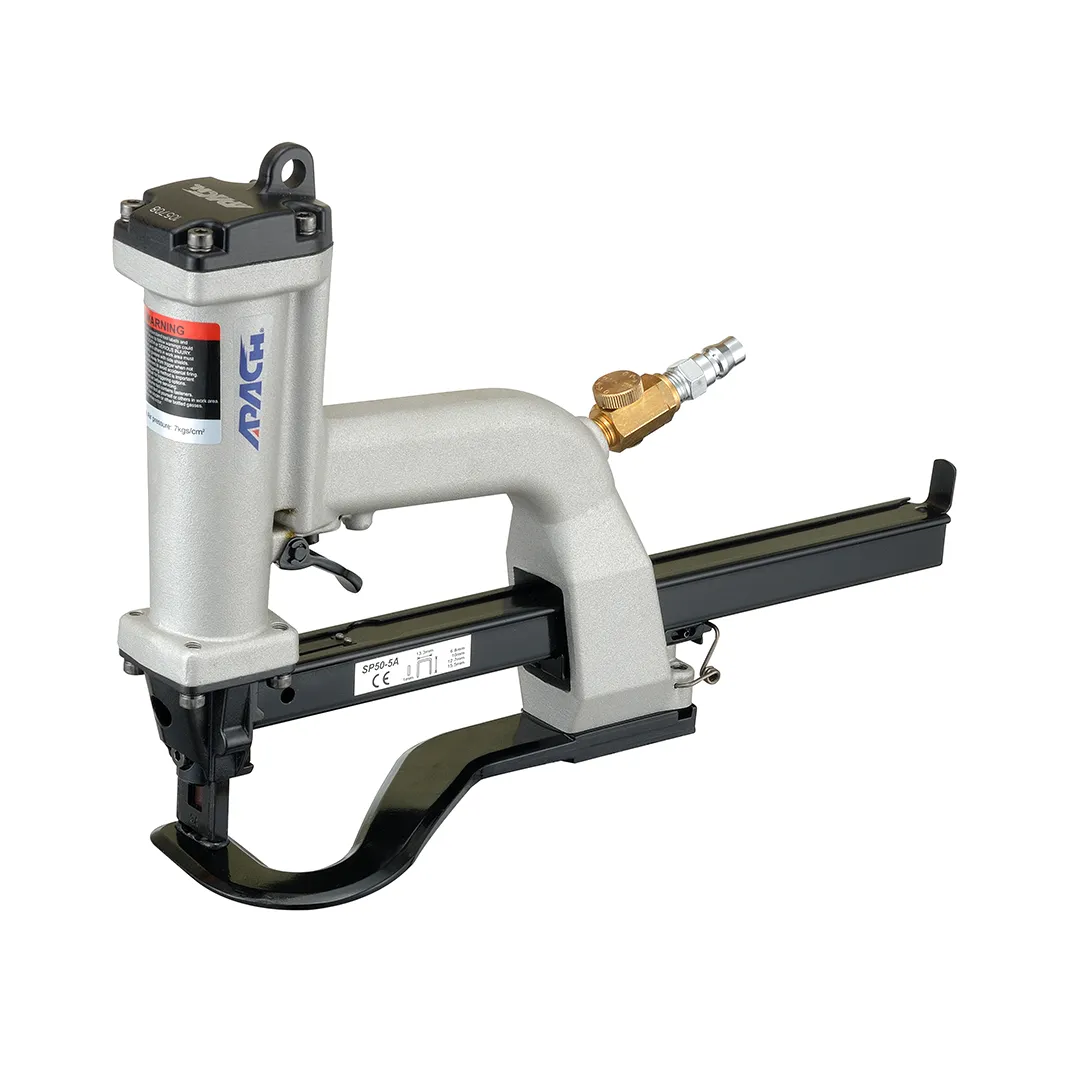

SP50-10B-A Pneumatic Stapling Plier
The SP50-10B-A Pneumatic Stapling Plier is a pneumatic stapling plier engineered for mechanical carton closing—that is, sealing corrugated boxes using industrial staples instead of tape or glue. It belongs to the SP50 series, which is widely used in packaging lines for fast, strong, and consistent carton sealing. This model is equipped with two specialized claws, B and CL, which help position and clamp the carton material securely before each staple is driven.
Product Information
FEATURES
- Powerful Shuttle Blade Provides Pre-Compression Prior to and During The Stapling Operating - Giving A Strong, Tight Closure Without Breaking The Corrugated Surface
- 6” x 1” High Throat Allows Flexibility of Staple Placement and Limits Interference from Obstacles Such As Box Flanges
- C Anvils (CL or CR Available for Sealing Partial Overlap Cartons)
- Penetrates and Securely Fastens up to 2 Thicknesses of Double - Wall:
- 2x AB Flute or 4x C Flute Boards
- (A Flute = 3/16” or 4.8 mm Thick)
- (B Flute = 1/8” or 3.2 mm Thick)
- (C Flute = 5/32” or 4.0 mm Thick)
FASTENERS
- Staple Type: SB 1030
- Similar to: SB103020 Series
- Crown: 12.95 mm (0.512 inch)
- Wire: 2.60 x 0.50 mm (0.103 x 0.020 inch)
- Length: 10 to 15 mm (3/8 to 5/8 inch)
APPLICATIONS
SPECIFICATIONS
- Weight: 2.20 kg (4.8 lbs)
- Dimensions (L*W*H): 370 x 55 x 240 mm (14.57 x 2.17 x 9.45 inch)
- Operated Pressure: 2.5 - 3.9 kg/cm2 (36 - 55 psi)
- Load Capacity: 102 Staples
