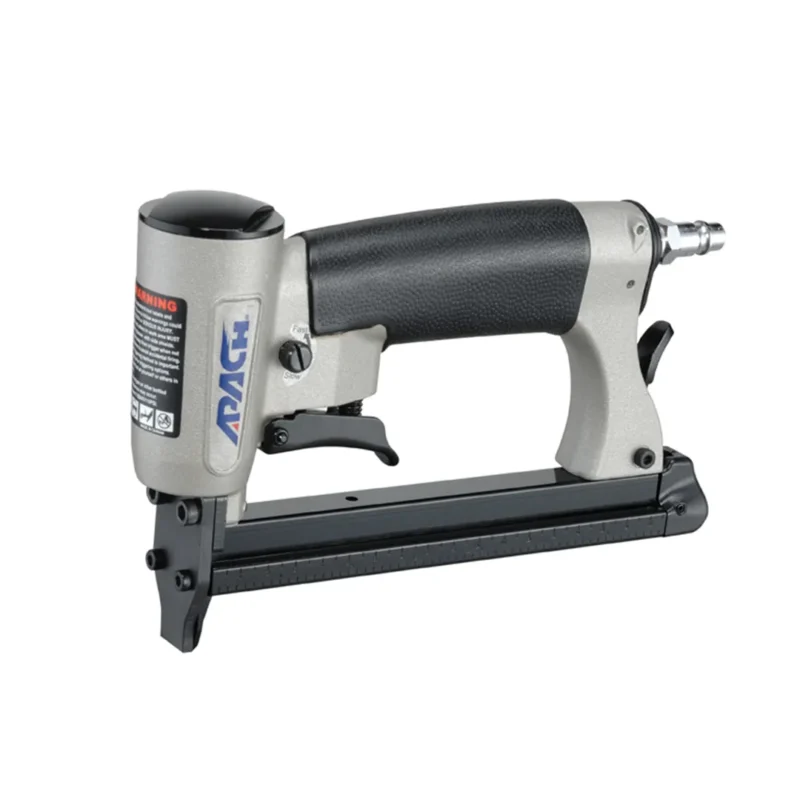

LU-8016.1 Auto/LM 80 Series Auto-Fire Stapler, Long Magazine
The LU-8016.1 Auto/LM 80 Series Auto-Fire Stapler, Long Magazine is a high‑speed, auto‑fire 80‑Series fine‑wire stapler designed for industrial upholstery, furniture production, bedding, packaging, and high‑volume assembly lines. The AUTO designation indicates continuous‑fire capability, while LM typically denotes a Long‑Mag (extended magazine) or Long‑Nose variant depending on manufacturer configuration. In practice, this model is built for maximum throughput, reduced reload frequency, and improved reach in tight upholstery folds and deep‑set seams.
Product Information
FEATURES
- Speed Adjustable. Minimum 27 Staples / Sec when Adjusted to Highest Speed
- Light Squeeze Trigger to Single Fire, Full Squeeze to Auto-Fire No Adjustment Needed
- Hammer Cap
- Rear Exhaust
- Bottom Load Long Magazine – Quick Load and Easy Jam Clearance
- Low Fastener Re-Load Indicator Window

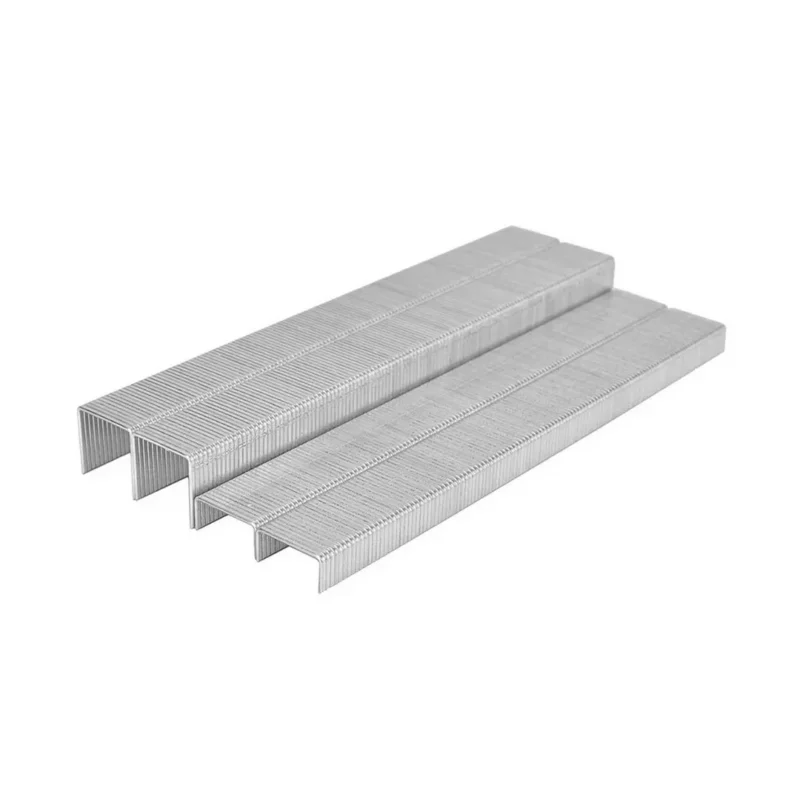

FASTENERS
- Staple Type: 80 Series
- Compatible with Complete 80, Atro 8, BeA 80, JK 680, Haubold 800 Series

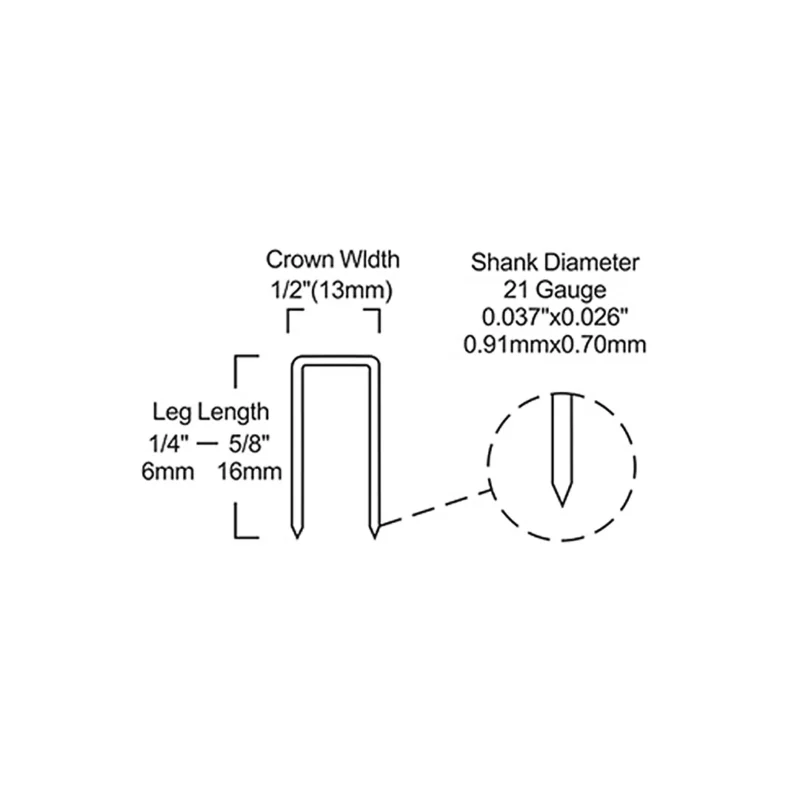

- Crown: 12.8 mm (0.50 inch)
- Wire: 0.91 x 0.71mm (0.036 x 0.028 inch)
- Length: 6 to 16 mm (1/4 to 5/8 inch)
APPLICATIONS
SPECIFICATIONS
- Weight: 1.1 kg (2.4 lbs)
- Dimensions (L*W*H): 352 x 45 x 148 mm (13.8 x 1.8 x 5.8 inch)
- Operated Pressure: 6 - 7.7 kg/cm2 (85 - 110 psi)
- Load Capacity: 290 Staples
