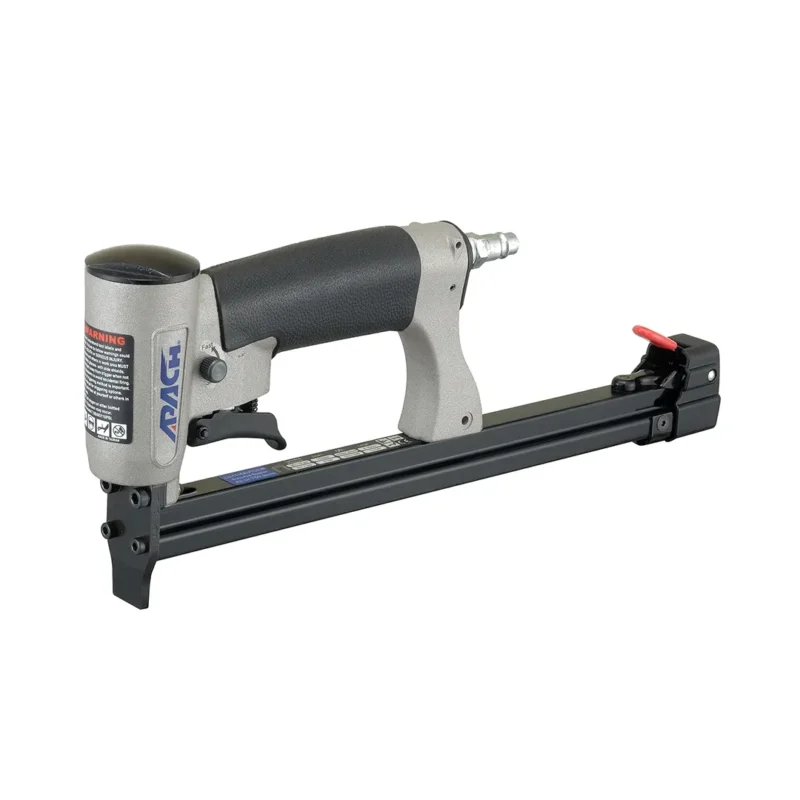

LU-8016.1AUTO 80 Series Auto-Fire Stapler
The LU-8016.1AUTO 80 Series Auto-Fire Stapler is a high‑speed, auto‑fire 80‑Series fine‑wire stapler engineered for rapid upholstery production, furniture assembly lines, packaging, bedding, and high‑volume stapling environments. Built on the proven LU‑8016 platform, the “.1AUTO” variant incorporates an automatic firing mechanism, allowing continuous stapling as long as the trigger is held—dramatically increasing throughput while maintaining precision and surface cleanliness.
Product Information
FEATURES
- Speed Adjustable. Minimum 27 Staples / Sec when Adjusted to Highest Speed
- Light Squeeze Trigger to Single Fire, Full Squeeze to Auto-Fire No Adjustment Needed
- Hammer Cap
- Rear Exhaust
- Bottom Load Magazine – Quick Load & Easy Jam Clearance
FASTENERS
- Staple Type: 80 Series
- Compatible with Complete 80, Atro 8, BeA 80, JK 680, Haubold 800 Series
- Crown: 12.8 mm (0.50 inch)
- Wire: 0.91 x 0.71mm (0.036 x 0.028 inch)
- Length: 6 to 16 mm (1/4 to 5/8 inch)
APPLICATIONS
SPECIFICATIONS
- Weight: 1.0 kg (2.2 lbs)
- Dimensions (L*W*H): 220 x 45 x 148 mm (8.7 x 1.7 x 5.8 inch)
- Operated Pressure: 6 - 7.7 kg/cm2 (85 - 110 psi)
- Load Capacity: 100 Staples
