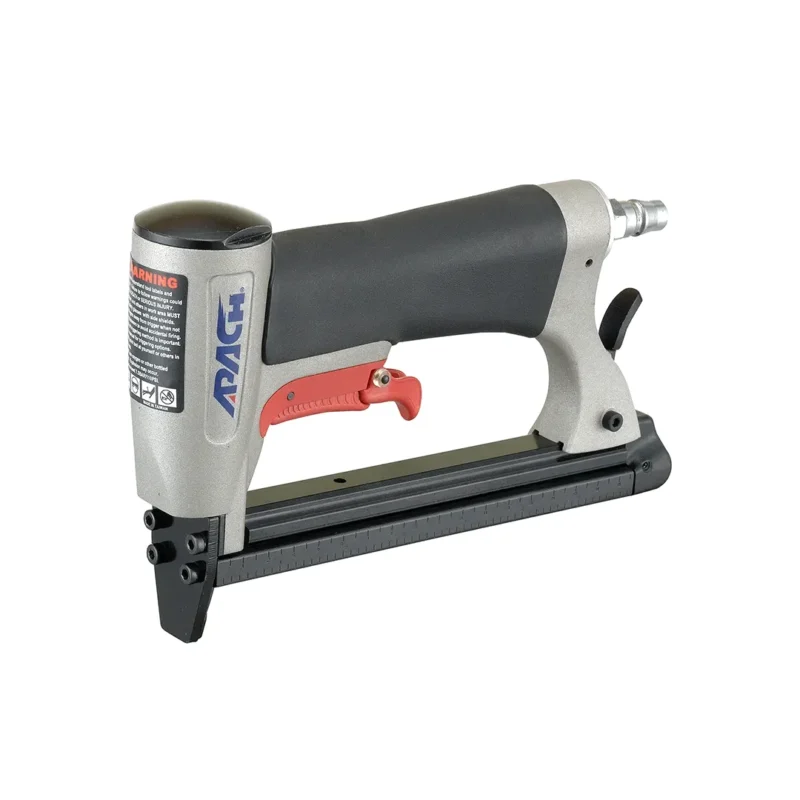

UDFS-1013J Fine Wire Stapler
The URFS-1013J Fine Wire Stapler is a 10J‑Series fine‑wire stapler designed for precision upholstery, textile work, leather/vinyl fastening, furniture assembly, and light wood applications. The 10J staple profile uses an ultra‑fine wire with a J‑style crown, making it ideal for applications requiring minimal fabric disturbance, clean penetration, and reduced surface marking. This model is built for professional production environments where speed, delicacy, and consistency are essential.
Product Information
FEATURES
- Light weight and well balanced for easy operating.
- 360º exhaust cover, direct exhaust air away from users.
- Reduces working fatigue.
- Economical air consumption, low noise.
- Tool free depth of drive adjustment, for flush or countersunk drive into varying material.
- Hardened special steel driver for longer life.
FASTENERS
- Staple Type: 10J Series
- Crown Size: 11.2 mm (0.44 inch)
- Length: 5 to 13 mm (3/16 to 1/2 inch)
- Wire: 1.26 x 0.54 mm (0.05 x 0.02 inch)
APPLICATIONS
SPECIFICATIONS
- Weight: 0.9 kg (1.98 lbs)
- Dimensions (L*W*H): 168 x 45 x 230 mm (6.61 x 1.77 x 9.06 inch)
- Operated Pressure: 4 - 7 kg/cm2 (60 - 100 psi)
- Load Capacity: 150 Staples
