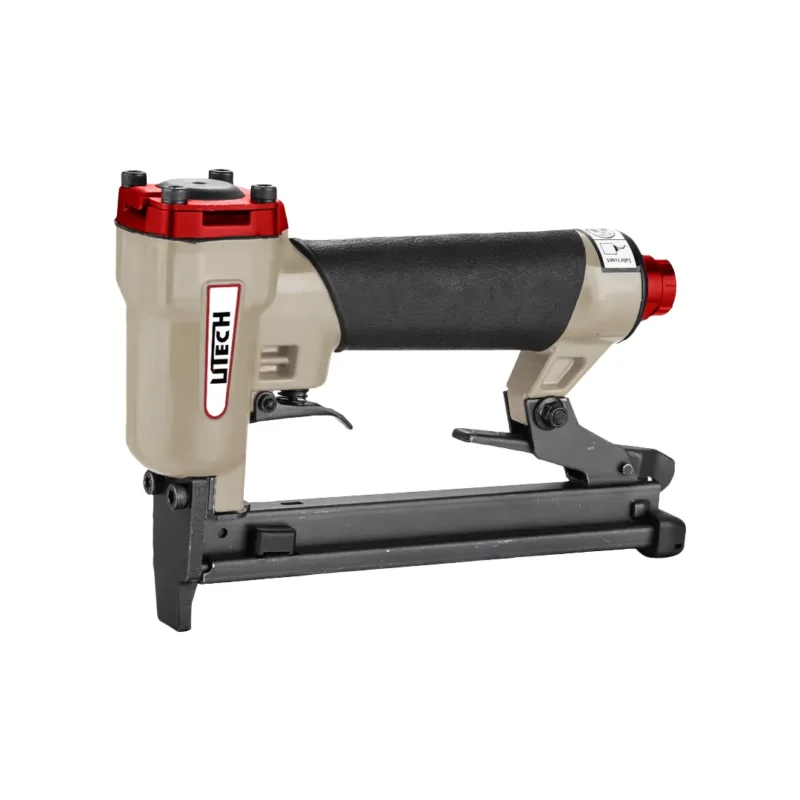

UDFS-1013F Fine Wire Stapler
The UDFS-1013F Fine Wire Stapler is a fine‑wire stapler designed for upholstery, furniture assembly, textile fastening, leather/vinyl work, and light wood applications. As part of the 10F/13F‑class fine‑wire stapler family, it uses ultra‑fine staples that deliver clean penetration, minimal surface marking, and excellent control—ideal for precision‑critical production environments. This model is typically positioned as a professional‑grade, high‑speed, low‑impact stapler for upholstery shops, furniture factories, and light assembly lines.
Product Information
FEATURES
- Light weight and well balanced for easy operating.
- 360º exhaust cover, direct exhaust air away from users.
- Reduces working fatigue.
- Economical air consumption, low noise.
- Tool free depth of drive adjustment, for flush or countersunk drive into varying material.
- Hardened special steel driver for longer life.

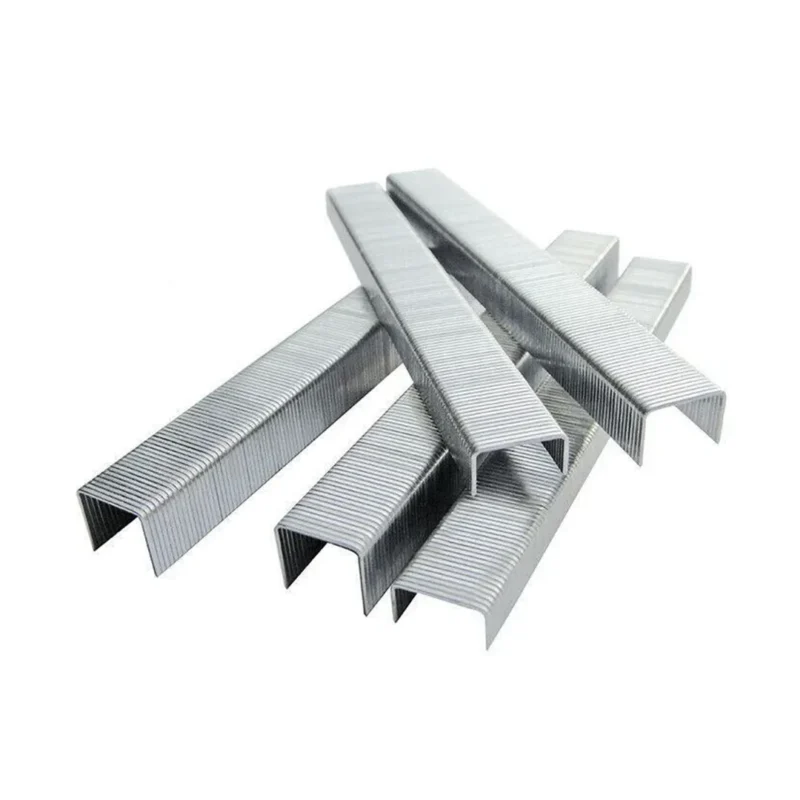

FASTENERS
- Staple Type: 10F Series
- Crown Size: 11.2 mm (0.44 inch)
- Length: 5 to 13 mm (3/16 to 1/2 inch)
- Wire: 0.75 x 0.5 mm (0.03 x 0.02 inch)
APPLICATIONS
SPECIFICATIONS
- Weight: 0.9 kg (1.98 lbs)
- Dimensions (L*W*H): 168 x 45 x 230 mm (6.61 x 1.77 x 9.06 inch)
- Operated Pressure: 4 - 7 kg/cm2 (60 - 100 psi)
- Load Capacity: 150 Staples
