Automate Modular For Jumbo Coil Nails
The Automate Modular for Jumbo Coil Nails is a high‑capacity, industrial‑grade nail‑feeding and handling solution engineered for automated nailing lines that require continuous, uninterrupted operation. Designed to accommodate jumbo‑size coil nails—significantly larger than standard coils—the system enables extended runtime, reduced changeovers, and higher production efficiency in demanding manufacturing environments.
Product Information
FEATURES
- Powerful, Applicable automatic arm robot system (Patented)
- High magazine capacity
- Durable metal frame
- Customized design
- Automatic remote control trigger valve
FASTENERS
- Type: Wire Coil Hi-Load Jumbo Nails
- Length:
- 45 - 57 mm (1 ¾ - 2 ¼ inch) for CN-57E-RBM
- 45 - 70 mm (1 ¾ - 2 ¾ inch) for CN-70E-RBM

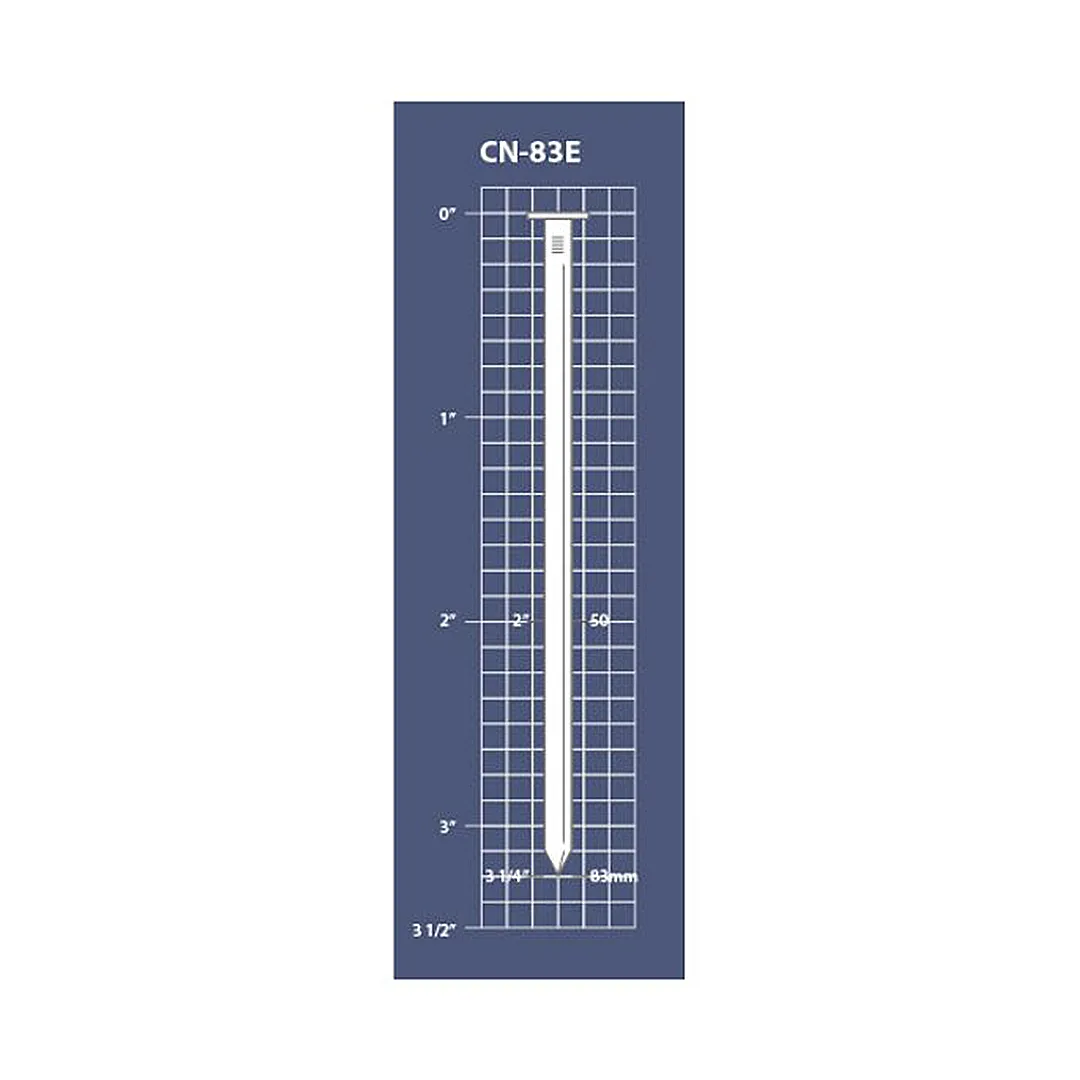

- 45 - 83 mm (1 ¾ - 3 ¼ inch) for CN-83E-RBM
- Shank Diameter:
- 2.1 - 2.3 mm (0.083 - 0.090 inch) for CN-57E-RBM
- 2.3 - 2.5 mm (0.090 - 0.113 inch) for CN-70E-RBM
- 2.5 - 3.3 mm (0.099 - 0.131 inch) for CN-83E-RBM
- Shank Type: Smooth, Ring & Screw
SPECIFICATIONS
- Weight:
- CN-57E-RBM: 10.0 kgs (22.04 lbs)
- CN-70E-RBM: 10.7 kgs (23.58 lbs)
- CN-83E-RBM: 11.0 kgs (24.25 lbs)
- Operating Pressure (All models): 5.6 - 7 kg/cm2 (80 - 100 psi)
- Load Capacity (All models): 2,000 - 3,000 nails
