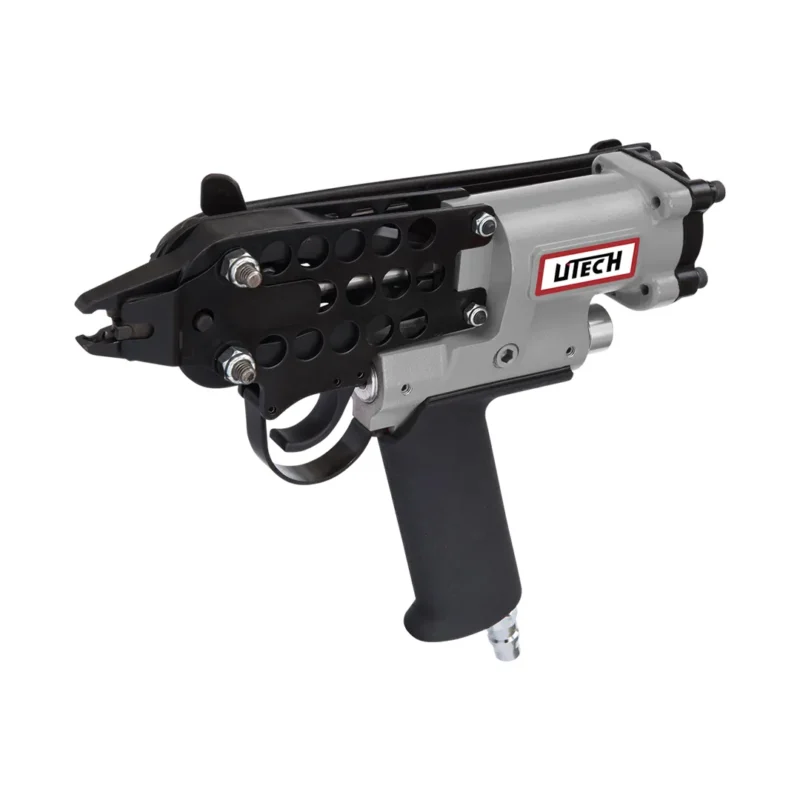

UTH-SC7E Pneumatic C-Ring Tool
The UTH-SC7E Pneumatic C-Ring Tool is a high‑speed pneumatic C‑ring tool engineered for secure, uniform fastening in industrial applications that require strong circumferential clamping. Designed to drive SC7‑series C‑rings, the tool delivers tight, consistent closures ideal for mattress manufacturing, automotive seating, wire‑frame assembly, fencing, cage fabrication, and upholstery production.
Product Information
FEATURES
- Well balanced, ergonomically designed.
- Large capacity long magazine
- Can be easily converted to right or left hand operation
- Rubber comfort grip.
- Low noise.
FASTENERS

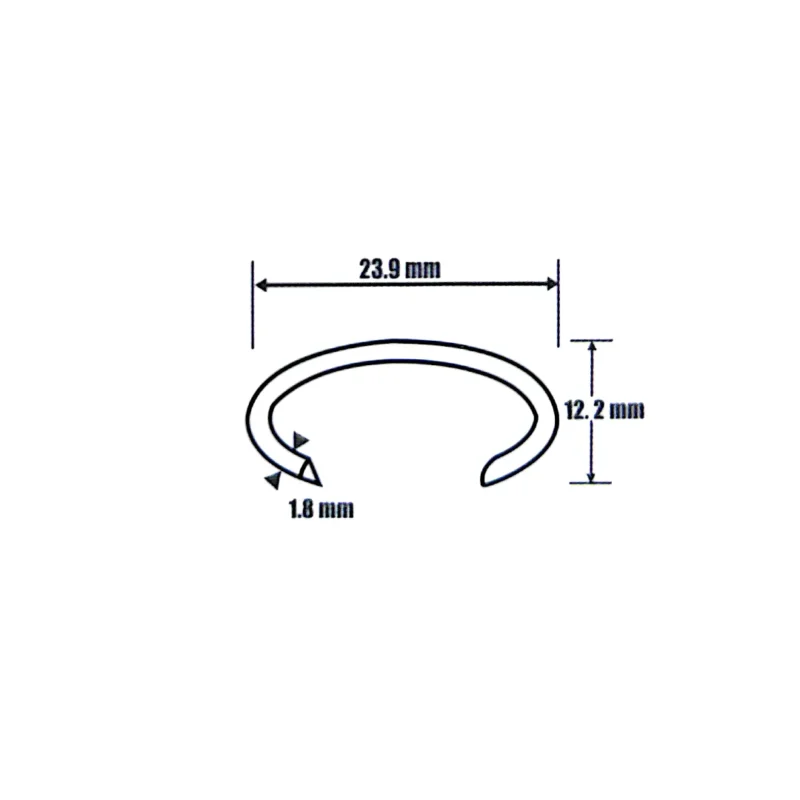

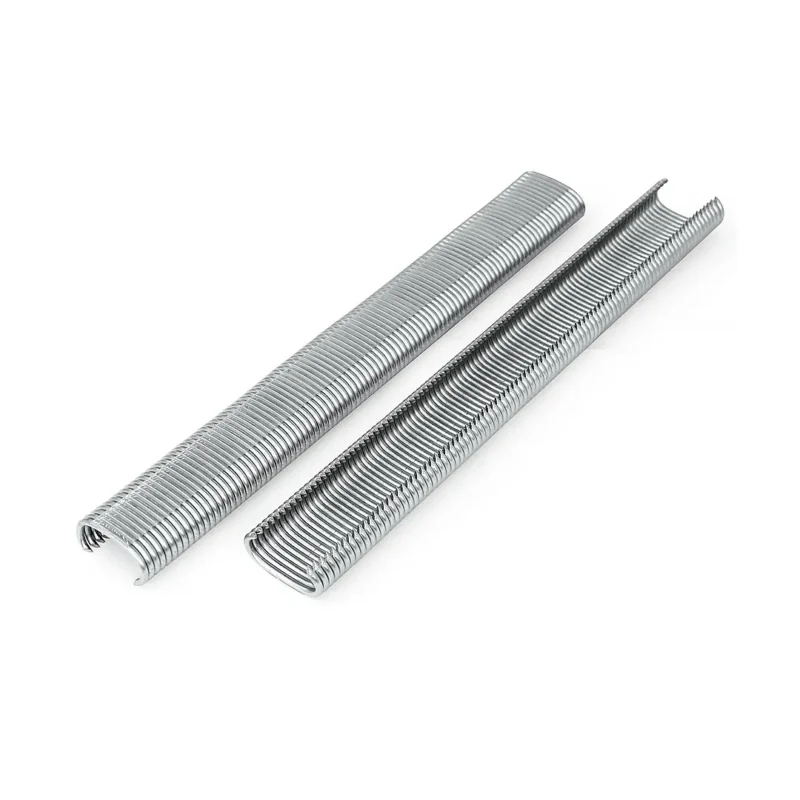

- Type: SC-7 Series C Rings
- Crown: 23.7 mm (0.93 inch)
- Wire: 1.8 mm (0.070 inch)
- Length: 12 mm (1/2 inch)
APPLICATIONS
SPECIFICATIONS
- Weight: 1.45 kgs (3.19 lbs)
- Dimensions (L*W*H): 280 x 220 x 100 mm (11.02 x 8.66 x 3.94 inch)
- Operating Pressure: 5 - 8.5 kg/cm2 (70 - 120 psi)
- Load Capacity: 130 Nails
