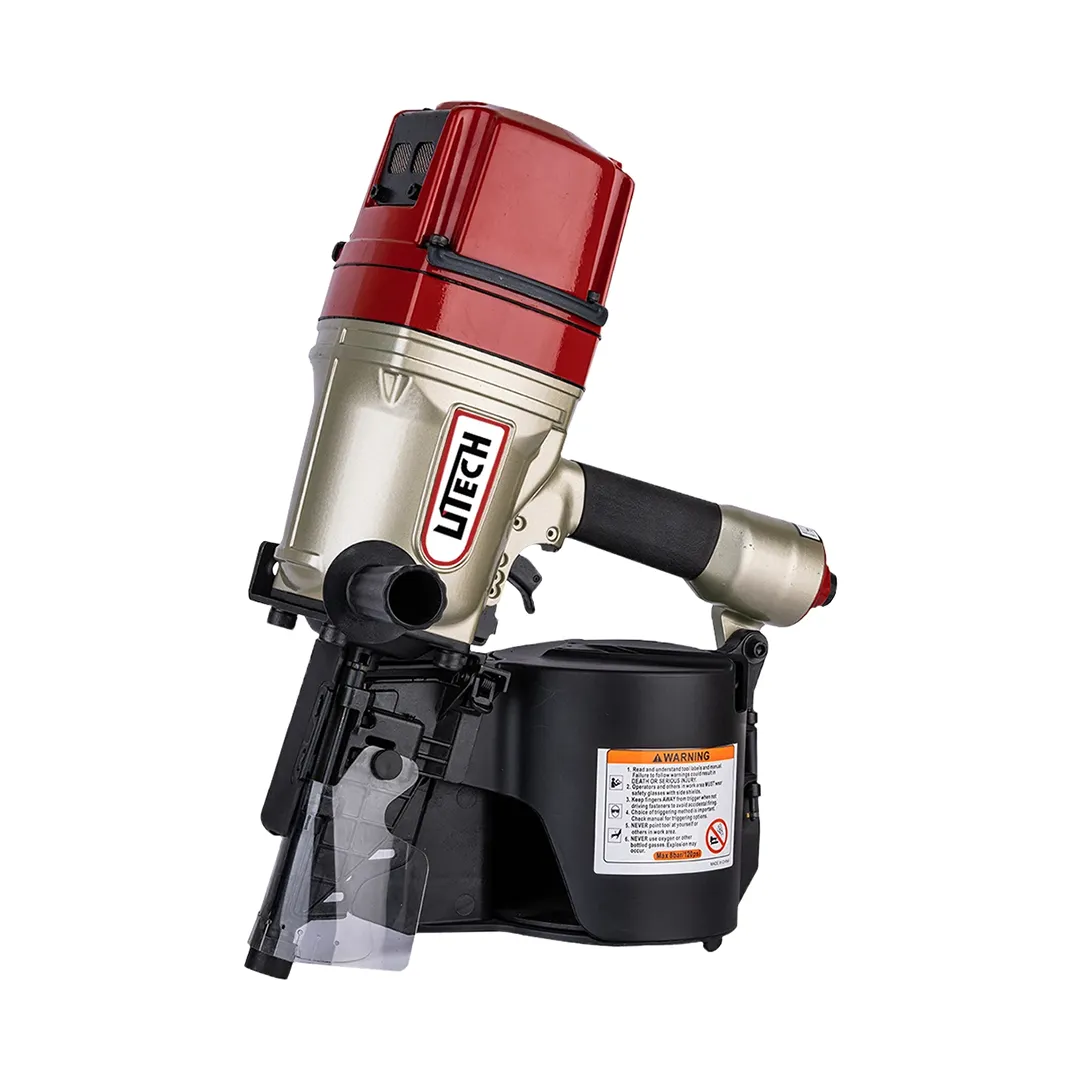

URCN-130 Industrial Coil Nailer
The URCN‑130 Industrial Coil Nailer is an extreme‑duty industrial coil nailer engineered for the heaviest fastening applications in timber construction, industrial fabrication, large‑scale crating, and oversized pallet manufacturing. Designed to drive extra‑long, heavy‑gauge coil nails with exceptional penetration and holding strength, the URCN‑130 stands at the top of the industrial coil‑nailer class. Its reinforced housing, ultra‑high‑energy firing system, and continuous‑feed magazine make it ideal for nonstop production environments where maximum power and reliability are essential.
Product Information
FEATURES
- Ergonomic Design, Well Balanced
- Powerful, Rapid Nailing Performance
- Body Protectors Equipped
- Top Exhaust Cap Available
- Durable Nose and Anti-Abrasive Driver
- High Speed Operation

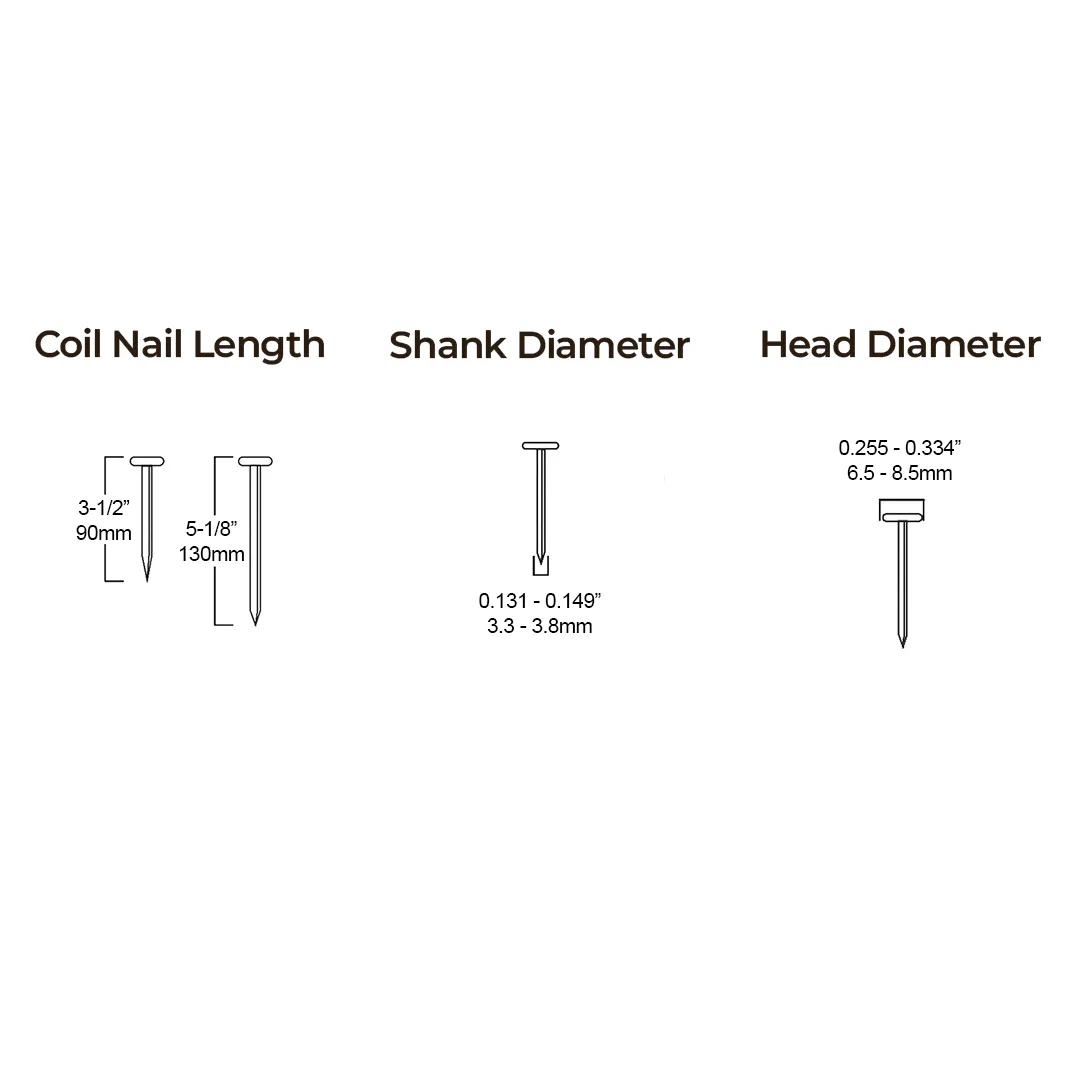

FASTENERS
- 15° Flat Wire Collated Nails
- Length: 90 to 130 mm (3 1/2 to 5 1/8 inch)
- Shank Diameter: 3.3 - 3.8 mm (0.131 - 0.149 inch)
- Head Diameter: 6.5 - 8.5 mm (0.255 - 0.334 inch)
- Shank Type: Smooth, Ring & Screw
APPLICATIONS
SPECIFICATIONS
- Weight: 6.10 kgs (13.42 lbs)
- Dimensions (L*W*H): 320 x 120 x 480 mm (12 5/8 x 4 3/4 x 18 7/8 inch)
- Operated Pressure: 5 - 8.3 kg/cm2 (70 - 120 psi)
- Load Capacity: 225 Nails
