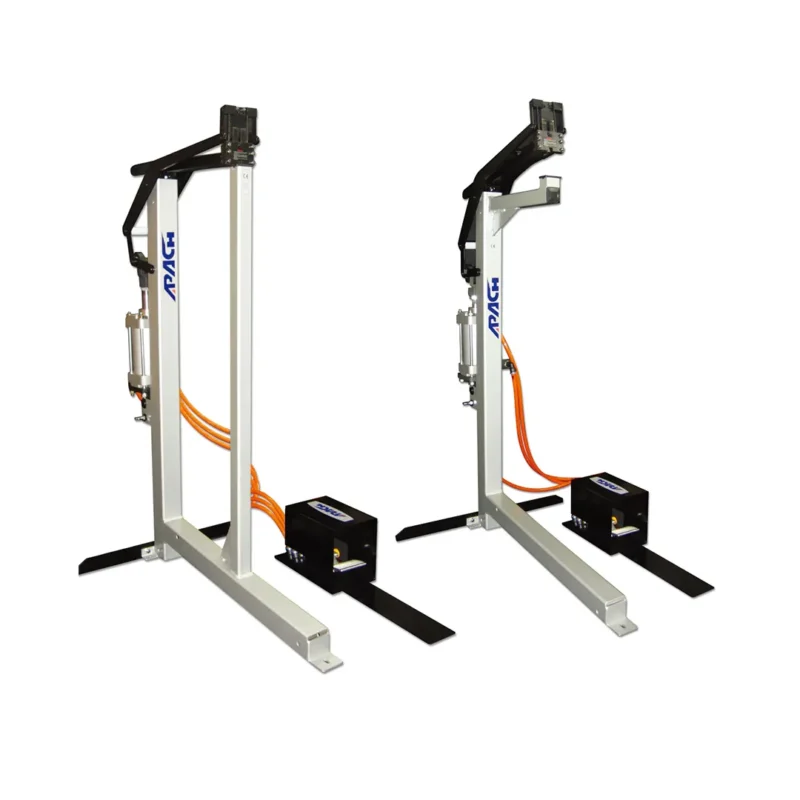

LPB-229040 Pneumatic Foot Bottomers
The LPB-229040 Pneumatic Foot Bottomers is a heavy‑duty pneumatic foot bottomer designed for fast, consistent stapling of carton bottoms in high‑volume packaging operations. Built for industrial environments, it allows operators to close the bottom flaps of corrugated boxes while keeping both hands free for positioning, feeding, and aligning cartons. Its foot‑pedal activation provides precise control over each staple, ensuring uniform penetration and clean clinching across single‑wall and double‑wall corrugated board.
Product Information
FEATURES
- Suggested for High Volume Production Outputs–50 to 100 Carton Bottoms Per Hour
- Equipped with A Safety Foot Pedal
FASTENERS
- Side Bottomers: LPS-229040
- Staple Type: SW9040 Series
- Crown: 34.50 mm (1.358 inch)
- Length: 15 to 22 mm (5/8 to 7/8 inch)
APPLICATIONS
SPECIFICATIONS
- Weight: 22.70 kg (50 lbs)
- Dimensions (L*W*H): 830 x 600 x 1245 mm (32.60 x 23.60 x 49 inch)
- Operated Pressure: 5.5 - 6 kg/cm2 (80 - 85 psi)
- Load Capacity: 200 Staples
