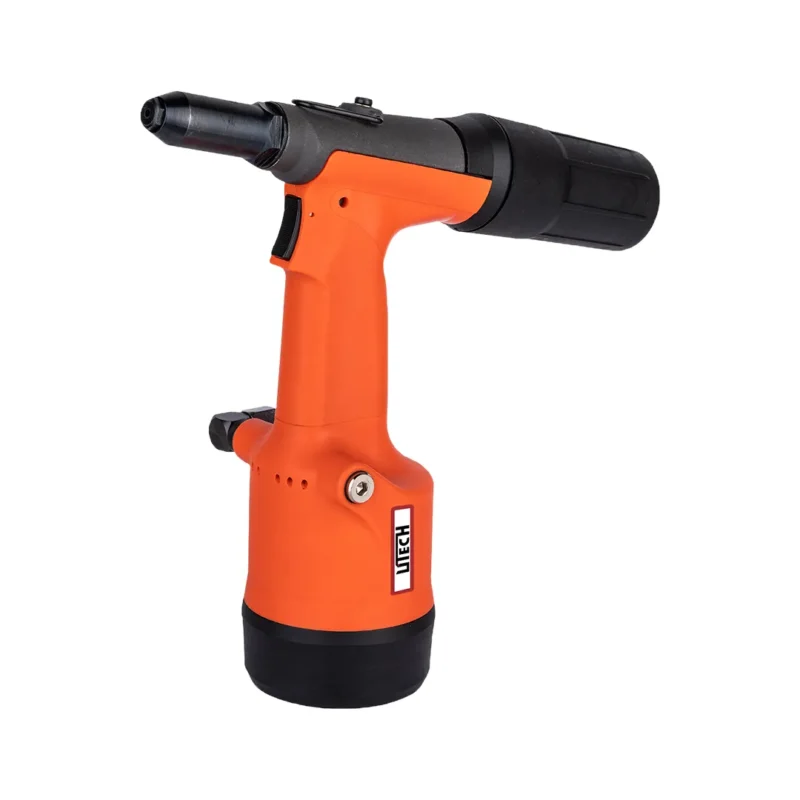

LMD-B Air Riveter
The LMD‑B Air Riveter is a high‑efficiency pneumatic air riveter engineered for fast, reliable installation of blind rivets in metal fabrication, automotive assembly, HVAC work, construction, and general industrial manufacturing. Designed to pull a wide range of standard aluminium, steel, and stainless‑steel blind rivets, the LMD‑C delivers strong, consistent setting force with smooth, low‑vibration operation.
Product Information
FEATURES
- The air riveter will install rivets from 3/32 inch to 1/4 inch in seconds.
- Longer stroke design which enhances the possibility of setting up the rivet in one go.
- Lightweight, weighing less than 2 kgs, including the bottle and inlet.
- Machine parts made by automated machines and specialized processes, combined with German-imported sealing, ensure longer tool life.
- Ergonomic handle for comfortable and easy operation.
FASTENERS
- Type: Rivet
- Sizes: 2.4 mm (3/32 inch), 3.2 mm (1/8 inch), 4 mm (5/32 inch), 4.8 mm (3/16 inch), 5.6 (7/32 inch) & 6.4 mm (1/4 inch)
APPLICATIONS
SPECIFICATIONS
- Weight: 1.96 kgs (4.32 lbs)
- Dimensions (L*W*H): 280 x 90 x 300 mm (11.02 x 3.54 x 11.81 inch)
- Operating Pressure: 5 - 8.3 bar (70 - 120 psi)
- Riveting Capacity: 2.4~6.4 mm steel rivet, 2.4~6.4 mm stainless steel rivet
- Stroke: 18 mm
- Max Pull Force: 3400 lbs
