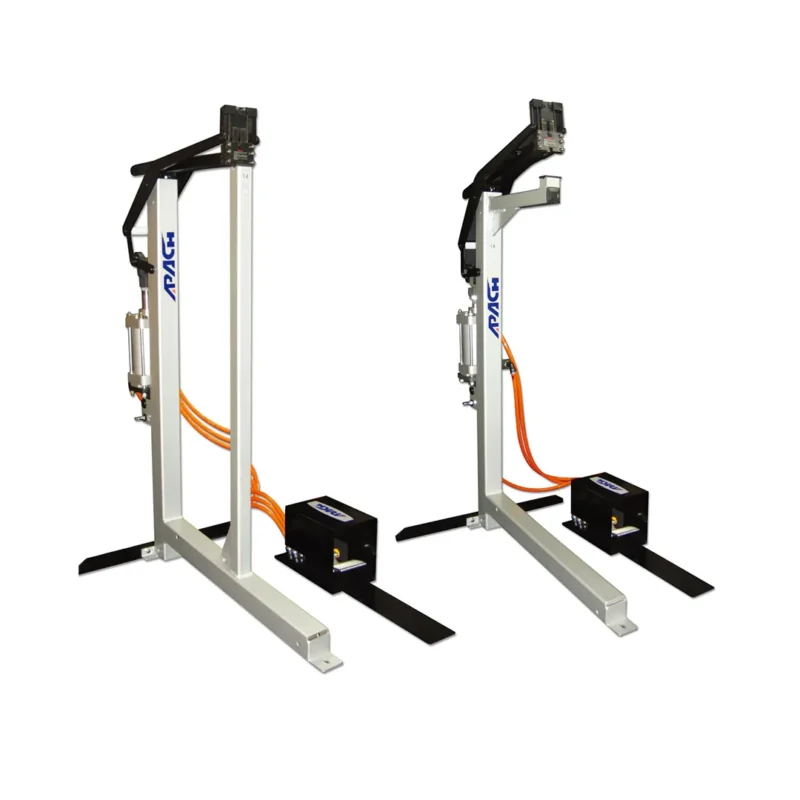

LMB-22A Pneumatic Foot Bottomers
The LMB-22A Pneumatic Foot Bottomers is a pneumatic foot‑operated bottomer designed for fast, secure stapling of carton bottoms in high‑volume packaging environments. Built for durability and efficiency, this machine allows operators to close the bottom flaps of corrugated boxes while keeping both hands free for positioning and feeding cartons. Its foot‑pedal activation provides precise control and consistent stapling force, making it ideal for repetitive production‑line use.
Product Information
FEATURES
- Suggested for High Volume Production Outputs–50 to 100 Carton Bottoms Per Hour
- Equipped with A Safety Foot Pedal
FASTENERS
- Side Bottomers: LPS-22A
- Staple Type: A strip
- Crown: 34.70 mm (1.366 inch)
- Length: 15 to 22 mm (5/8 to 7/8 inch)
APPLICATIONS
SPECIFICATIONS
- Weight: 22.70 kg (50 lbs)
- Dimensions (L*W*H): 830 x 600 x 1245 mm (32.60 x 23.60 x 49 inch)
- Operated Pressure: 5.5 - 6 kg/cm2 (80 - 85 psi)
- Load Capacity: 200 Staples
