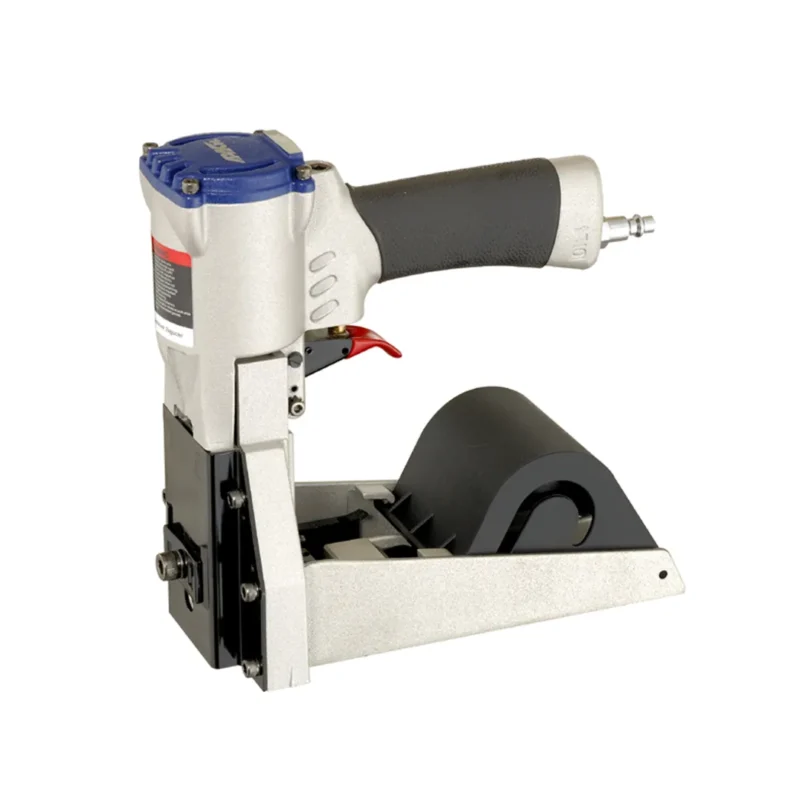

CCS-19T Coil-Series Carton Closing Stapler
The CCS-19T Coil-Series Carton Closing Stapler is a heavy‑duty, coil‑fed carton‑closing stapler designed for high‑volume packaging operations where speed, durability, and long uninterrupted stapling cycles are essential. Unlike stick‑fed staplers, the CCS‑19T uses a large‑capacity staple coil, allowing operators to seal hundreds of cartons with minimal reloading. This makes it especially effective on production lines, export‑packing stations, and distribution centers.
Product Information
FEATURES
- Ergonomic Handle
- Light Weight and Well Balanced
- Ideal for High Volume and Efficient Applications
- Quick Release to Prevent Jams
- Tightness and Depth of Clinch Adjustable
- Raised Top Cap for Enhanced Durability
- Low Noise
FASTENERS
- Staple Type: BLR Series Roll Staple
- Crown: 32.00 mm (1.260 inch)
- Wire: 1.90 x 0.90 mm (0.074 x 0.037 inch)
- Length: 15 to 18 mm (5/8 to 3/4 inch)
APPLICATIONS
SPECIFICATIONS
- Weight: 2.4 kgs (5.28 lbs)
- Dimensions (L*W*H): 233 x 115 x 230 mm (9.17 x 4.53 x 9.06 inch)
- Operated Pressure: 5 - 7 kg/cm2 (70 - 100 psi)
- Load Capacity: 1000 Staples
