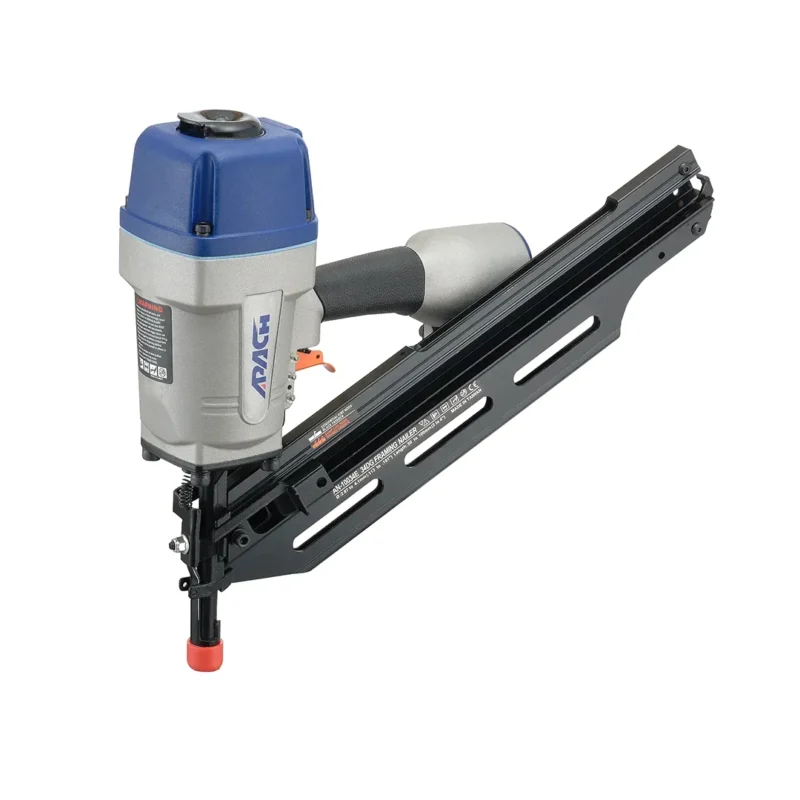

AN-9034-1 34 Degree Heavy Duty Nailer
The AN-9034-1 34 Degree Heavy Duty Nailer is a 34‑degree heavy‑duty framing nailer engineered for structural wood construction, pallet and crate assembly, industrial fabrication, and general heavy carpentry. Designed for high‑power performance with angled paper‑collated nails, it delivers strong, consistent driving force in tight framing spaces while maintaining excellent balance, low recoil, and reliable feeding.
Product Information
FEATURES
- Aggressive Toe-Nailing Teeth for Slip-free Grip when Fastening
- Depth-of Drive Adjustment
- Special Design No-Mar Rubber Pad for better working performance
- Dedicated Sequential or Bump or Anti-Double Trigger - for Enhanced Safety and Durability
- Light Weight and Well Balance
- Optional Hanger

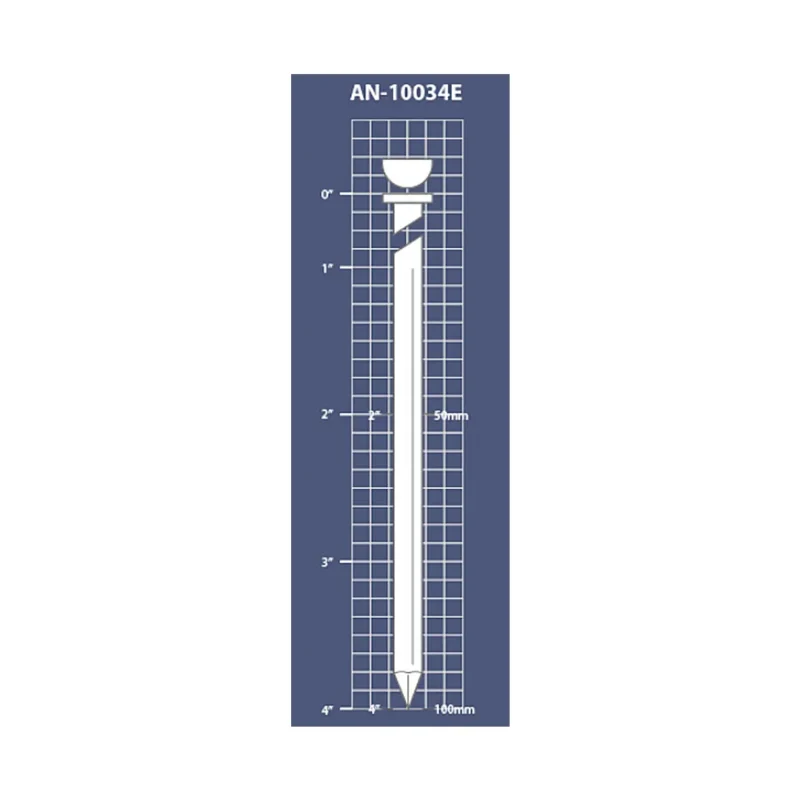

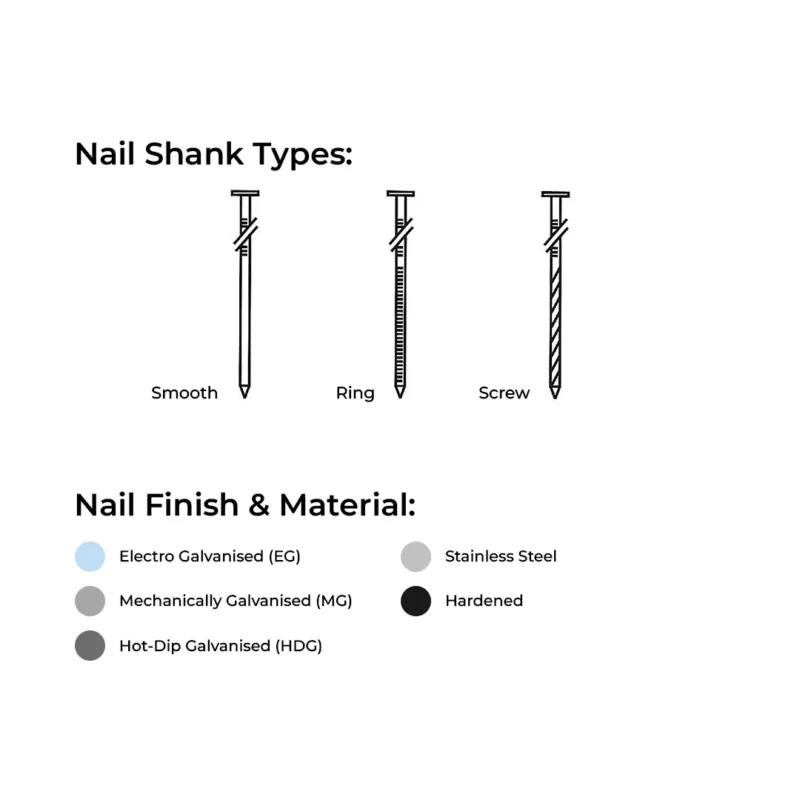

FASTENERS
- 34° D Head Paper Tape Collated Strip Nails
- Ø 2.87 - 4.1 mm (0.113 - 0.161 inch
APPLICATIONS
SPECIFICATIONS
- Weight: 3.5 kgs (7.7 lbs)
- Dimensions (L*W*H): 442 x 124 x 331 mm (17.4 x 4.88 x 13.03 inch)
- Operated Pressure: 6 - 8 kg/cm2 (85 - 120 psi)
- Load Capacity: 75 - 90 Nails
